Specifications:
- Model: Redring Powerstream RPS12, code 078438
- Rating: 12kW
- Flow rate: 3 to 6 litres per minute at 28 to 54C depending on inlet temperature
- Minimum flow to operate: 3.3 litres per minute
- Water pressure: 1 to 6 bar mains
- Serves: Up to two hand basins, or one basin and a shower with the optional Redring RM3 mixer kit
- Taps: Manual spray or non-thermostatic mixer taps; not for thermostatic, percussion or joystick taps
- Energy rating: A
- IP rating: IPX4
- Dimensions: 168 x 325 x 73mm
- Weight: 2kg
- Connections: Flexible tap connectors or 15mm copper with adaptor
- Electrical supply: Hard wired, dedicated circuit, 50A MCB, 10 or 16 sq mm cable, 30mA RCD; no plug
- Approvals: BEAB approved, CE and UKCA marked
- Guarantee: 2 years parts and labour
- EAN: 5011139078438

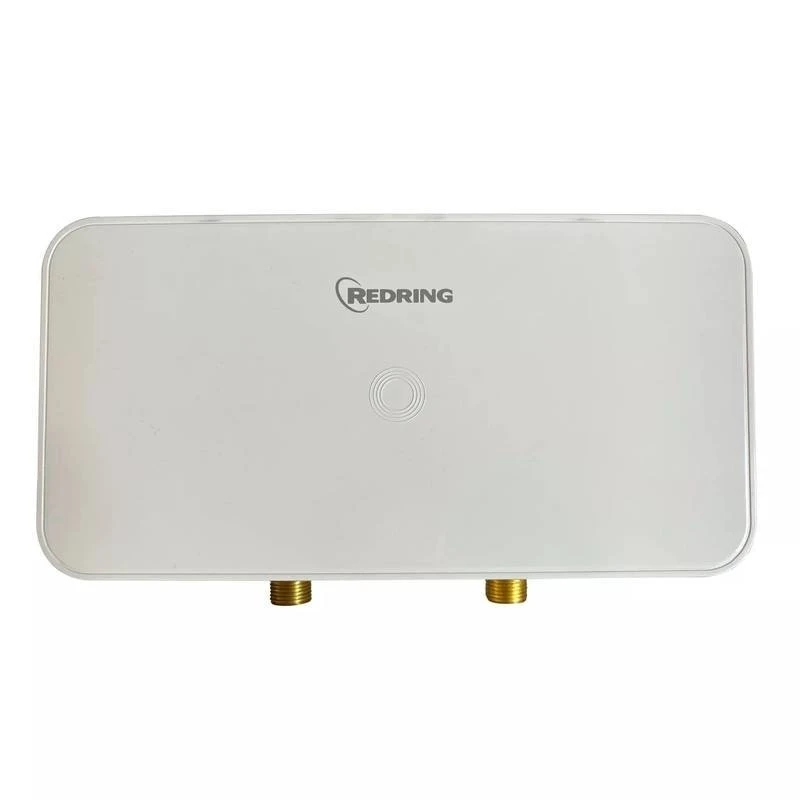

For a washroom basin a long way from the boiler, where hot water arrives late and lukewarm. The Redring Powerstream RPS12 is a 12kW instant water heater that fits in the cupboard under the sink and heats mains water only while the tap runs, so there is no tank and no standing heat loss. It suits hand basins in offices, schools, care homes, gyms, cloakrooms and en-suites, and can feed two basins. This model is the top of the range, for the highest outlet temperature at a given flow.
Important: the RPS12 is hard wired on its own dedicated circuit (50A MCB, 30mA RCD) and has no plug, so it must be installed by a qualified electrician to BS 7671. It is for hand washing, not for filling baths or washing up.
