Specifications:
- Product Type: Compact plug-in 24-hour timer for controlling appliances and electrical devices.
- Switching Capacity: 13 A resistive load (max ~3 kW); 2 A inductive load compatible.
- Switching Intervals: Up to 8 ON/OFF programmes in a 24-hour cycle.
- Power Supply: 230 V AC, 50 Hz mains powered.
- Ingress Protection Rating: For indoor use only – not suitable for outdoor or damp environments.
- Construction Material: Durable, flame-retardant plastic housing in compact design.
- Manual Override: Built-in ON/OFF switch for bypassing programmed schedule when required.
- Backup Power: Integral rechargeable battery retains settings for up to 24 hours during power cuts.
- Operating Temperature Range: 0 °C to +40 °C – suitable for typical indoor conditions.
- Mounting: Plug-in format – no installation required.
- Dimensions: Approx. 102 mm (H) × 57 mm (W) × 80 mm (D).
- Certifications: CE and UKCA marked; compliant with BS EN safety standards.
- Warranty: 3-year manufacturer’s guarantee.

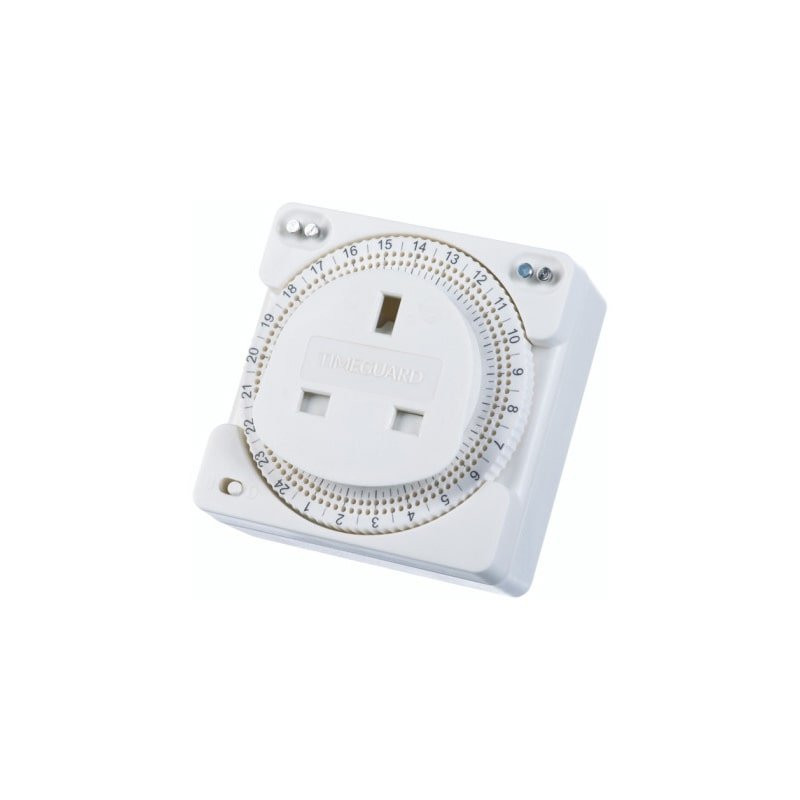

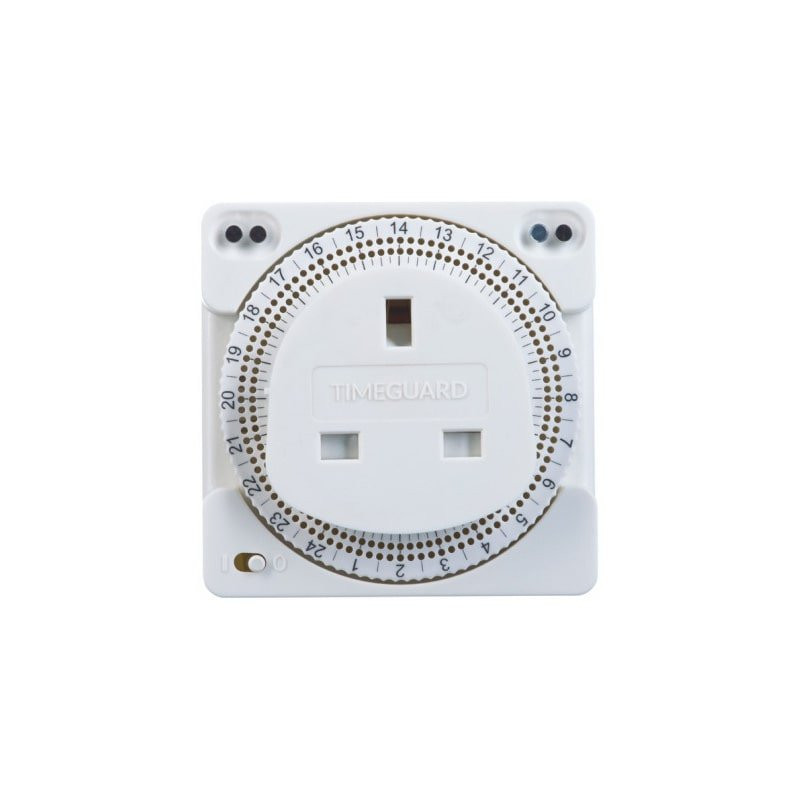

Timeguard TS800N 24 Hour Compact Plug-In Time Controller Timer
Simple, Reliable 24-Hour Power Control
The Timeguard TS800N 24 Hour Compact Plug-In Time Controller is the perfect solution for automating your appliances with ease and precision. Designed for convenience, it allows you to set daily on/off schedules for devices such as lamps, heaters, fans, and kitchen appliances. Its compact, plug-in design makes it effortless to use without any installation—just plug in and set your schedule.
Easy-to-Use 24-Hour Programming
With 48 on/off settings at 30-minute intervals, the TS800N offers complete daily control of your devices. The simple dial timer ensures quick and accurate adjustments, while the override switch gives you the flexibility to turn appliances on or off manually when needed. Perfect for improving energy efficiency, enhancing security, and reducing unnecessary power use.
Compact Design with Wide Application
The TS800N’s space-saving profile ensures it won’t block adjacent sockets, making it ideal for use in busy households, offices, or workshops. Built to BS safety standards, this timer is designed for long-lasting reliability, helping you manage energy costs and keep your devices operating exactly when you want them to.
