Specifications:
- Product Type: Surface-mounted passive infrared (PIR) presence and motion detector with integrated lighting control
- Detection Coverage: 360° field of view with up to 7 m detection radius (at 2.8 m mounting height)
- Detection Method: PIR sensor triggered by heat and movement changes
- Load Capacity:
- Resistive loads up to 1500 W (230 V AC)
- Fluorescent/LED loads up to 1000 W
- Time Delay Adjustment: Adjustable from approx. 10 seconds to 30 minutes
- Light Level Adjustment: Daylight sensitivity adjustable from 10–2000 lux
- Mounting Type: Ceiling surface-mount design with discreet profile
- Power Supply: 230 V AC, 50 Hz
- Ingress Protection Rating: IP40 – suitable for indoor use
- Operating Temperature Range: –10 °C to +40 °C
- Construction Material: Flame-retardant polycarbonate housing in white finish
- Dimensions: Approx. 115 mm diameter × 50 mm height
- Certifications: CE and UKCA approved; compliant with EN safety and EMC standards
- Warranty: 3-year manufacturer’s guarantee

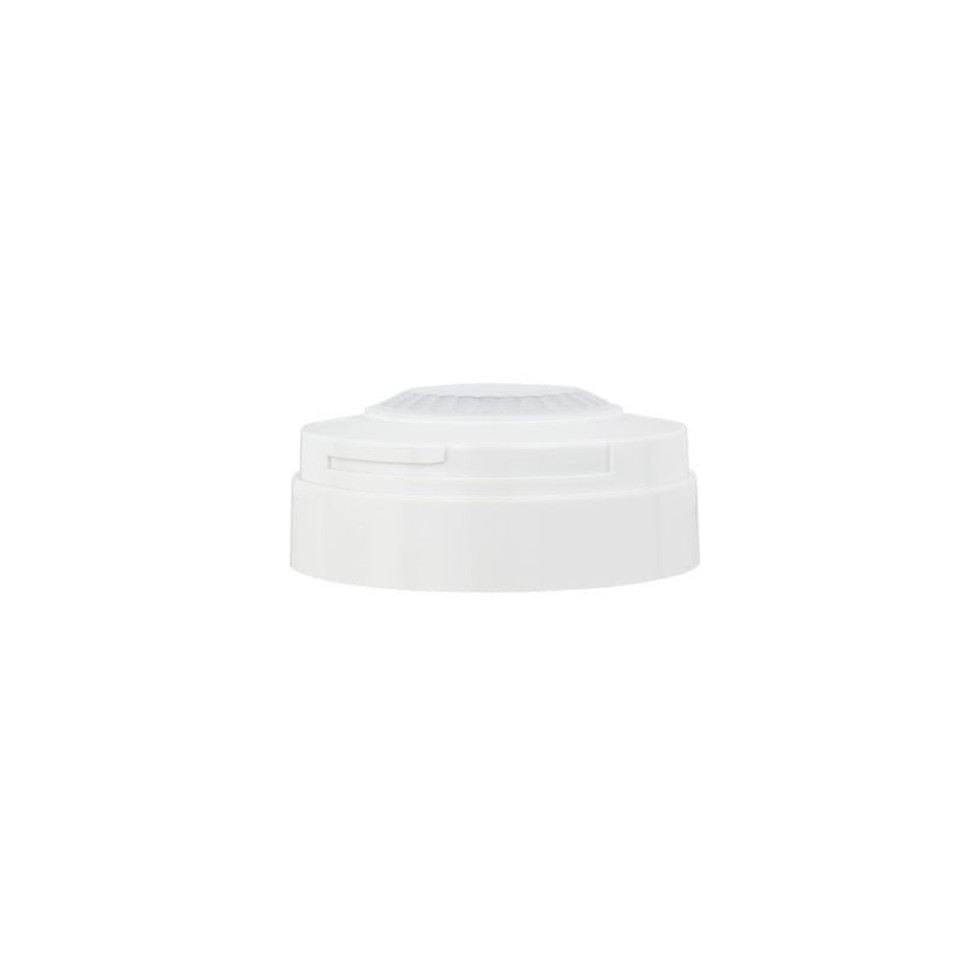

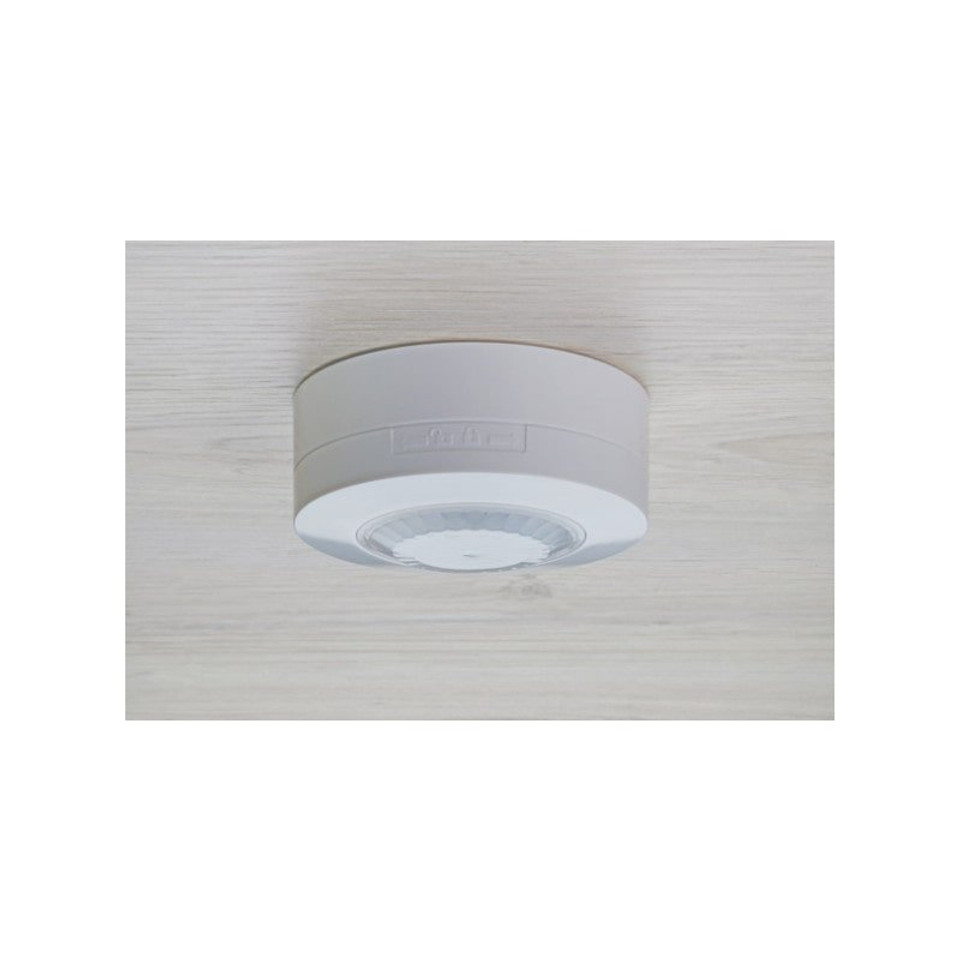

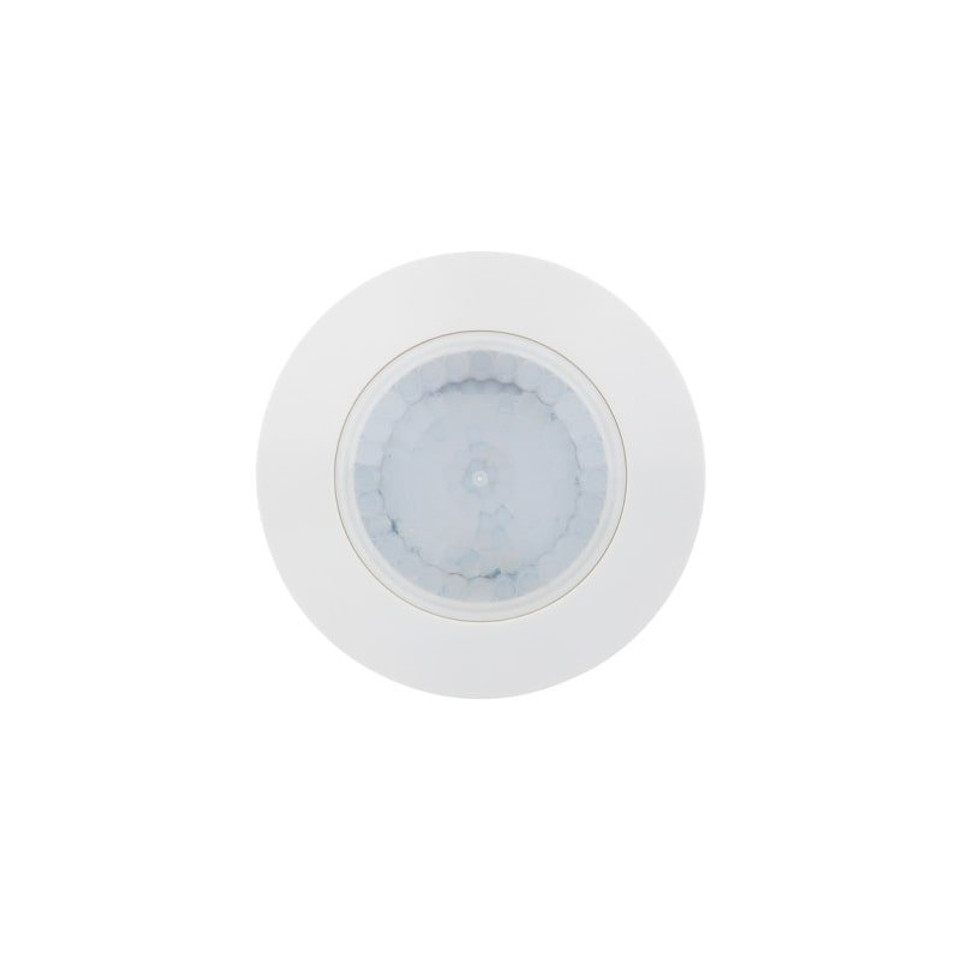

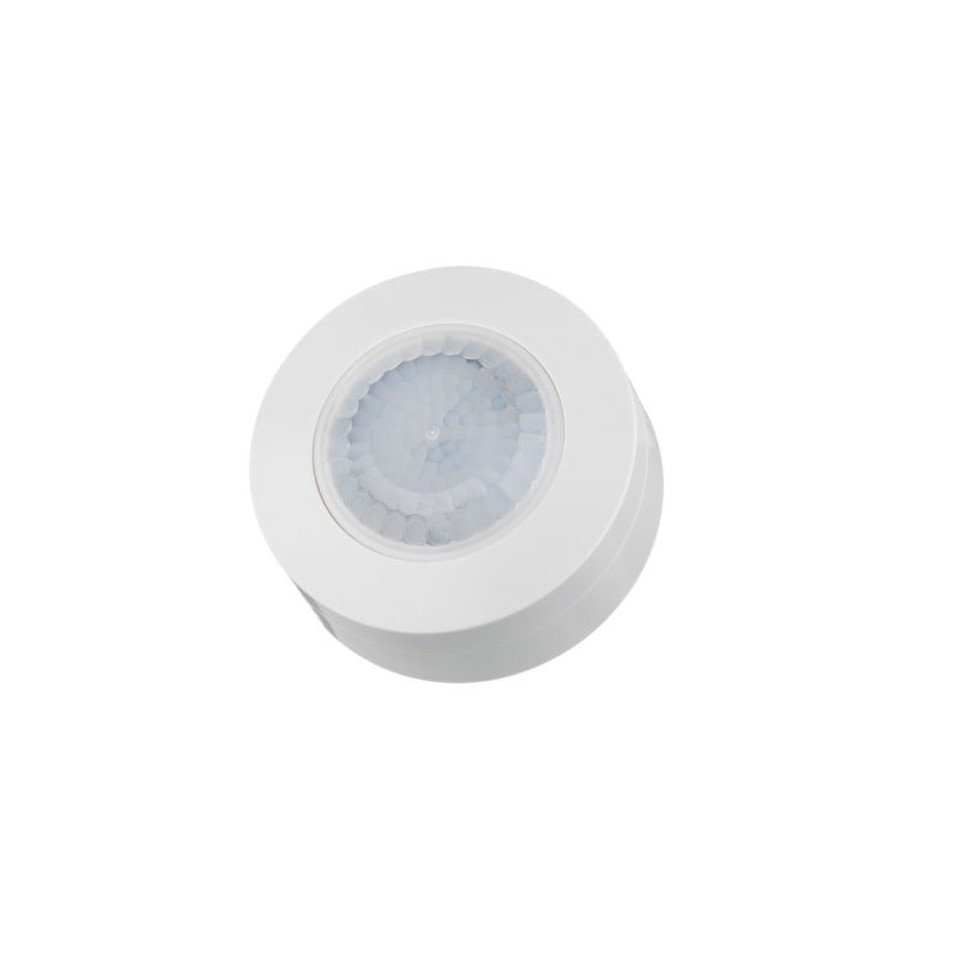

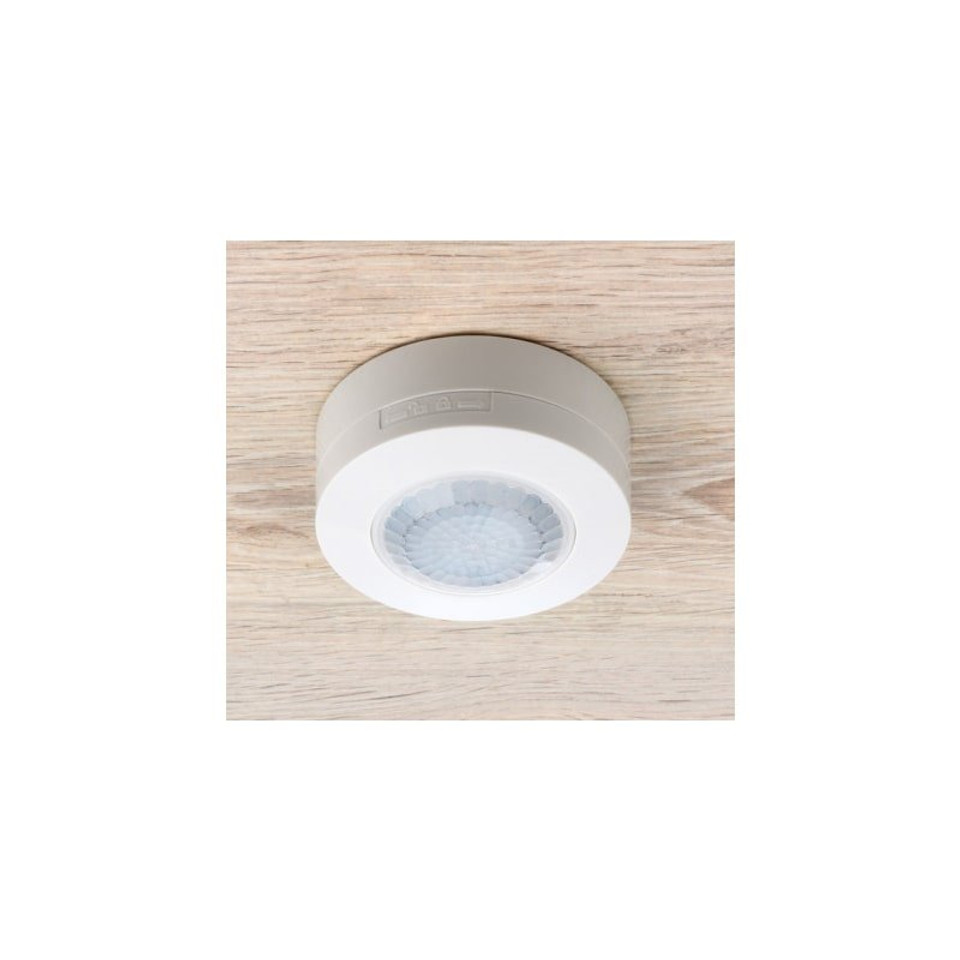

Timeguard PDRS1500N 360° Surface Mount Ceiling PIR Light Controller & Presence Detector
All-Round Motion Detection for Maximum Efficiency
The Timeguard PDRS1500N 360° Surface Mount Ceiling PIR Light Controller & Presence Detector delivers exceptional all-round motion sensing, ensuring lights are only active when needed. Its 360° coverage eliminates blind spots, making it perfect for offices, meeting rooms, corridors, and retail spaces. By detecting both presence and movement, it keeps spaces lit for as long as they’re occupied, providing comfort while reducing energy costs.
Smart Lighting Control with Adjustable Settings

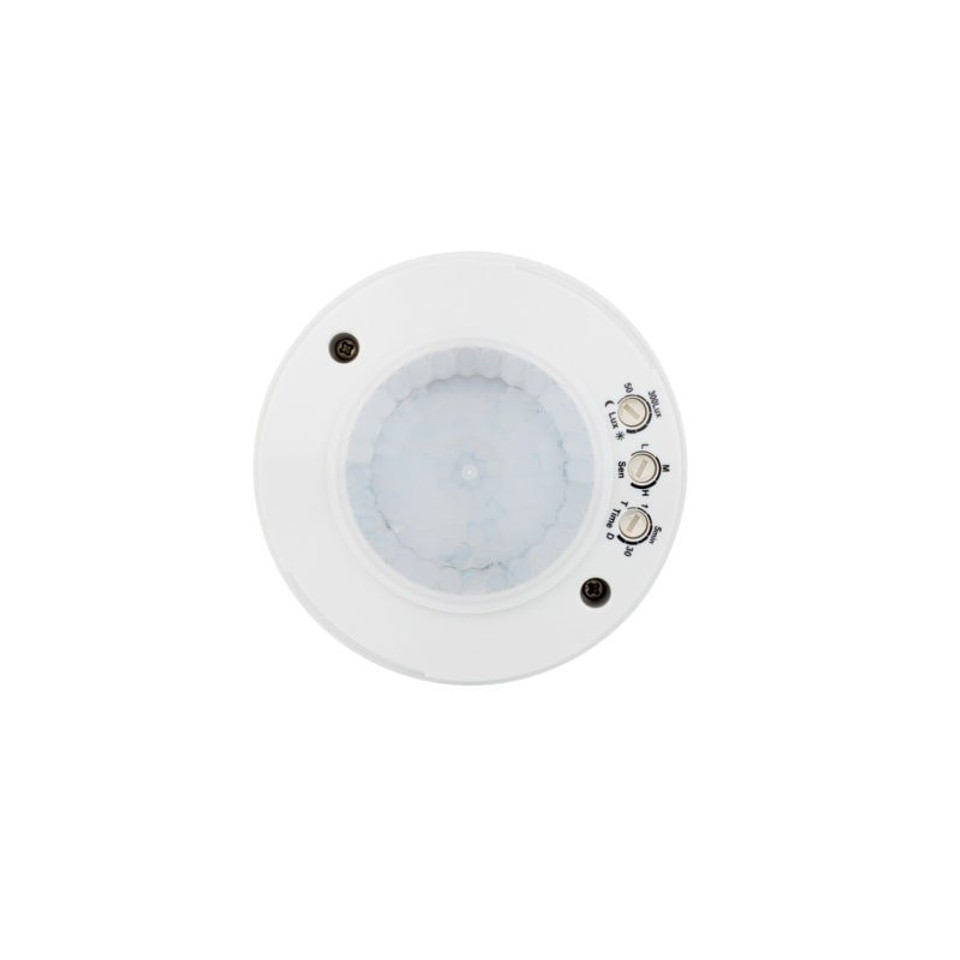

This high-performance PIR light controller features adjustable time delay and lux level controls, giving you full flexibility to match your lighting needs. The detector automatically responds to movement, activating lighting instantly and switching off after the set delay when no presence is detected. Compatible with LED, fluorescent, and other lighting types, it’s a versatile solution for modern energy management.

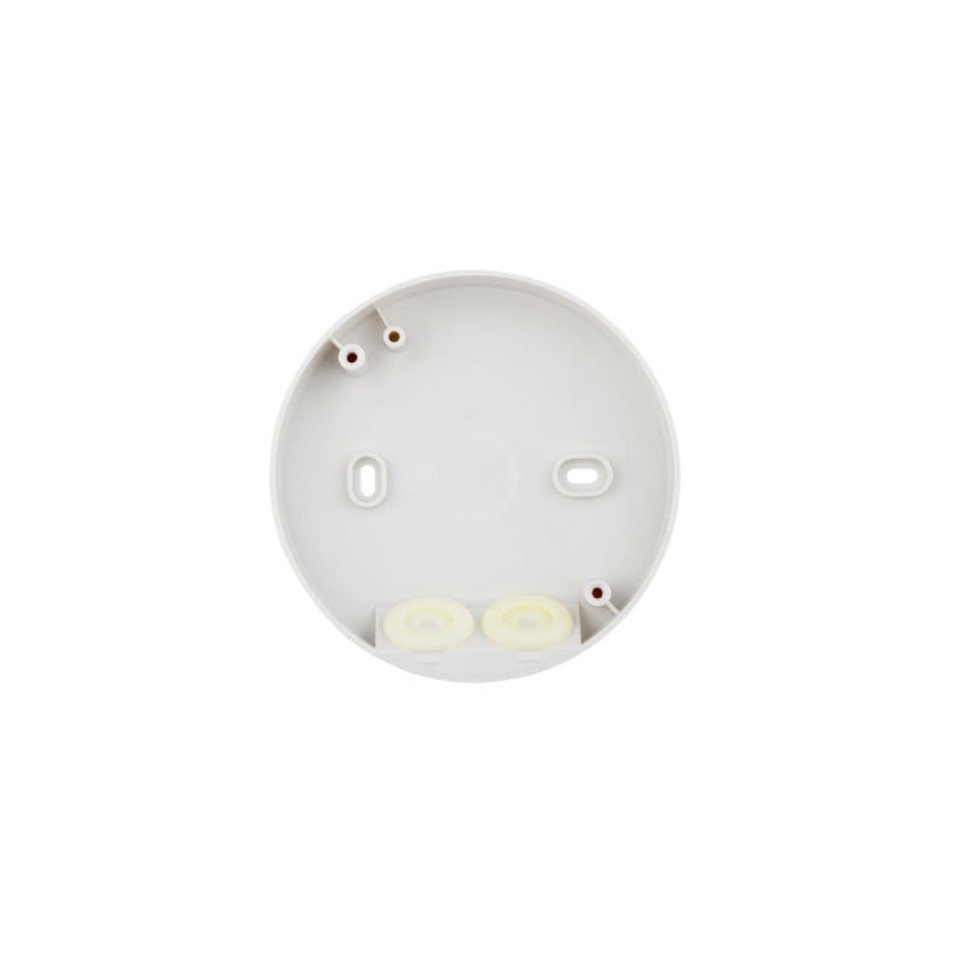

Durable Design & Easy Surface Mount Installation
Built to last, the Timeguard PDRS1500N combines robust construction with a sleek, unobtrusive profile. Its surface mount design makes installation quick and hassle-free, ideal for both new builds and retrofit projects. Whether in a commercial, educational, or residential setting, it ensures reliable performance with minimal maintenance.
