Specifications:
- Product Type: Flush-mounted dual-channel PIR presence/absence detector for lighting and HVAC control
- Detection Coverage: 360° area detection with up to 7 m radius (depending on mounting height and sensitivity setting)
- Detection Method: Passive infrared (PIR) sensing for occupancy and movement detection
- Mounting Height: Designed for ceiling installation at heights between 2.5 m and 3.5 m
- Load Capacity (per channel):
- Resistive loads up to 10 A (2300 W)
- LED/fluorescent lighting up to 6 A
- Compact fluorescent up to 6 A
- Time Delay Adjustment: Adjustable run-on time from 10 seconds to 30 minutes
- Light Level Adjustment: Adjustable daylight threshold between 10–2000 lux
- Control Modes: Presence mode (automatic on/off) or absence mode (manual on/automatic off) selectable per channel
- Ingress Protection Rating: IP40 – for indoor use in non-damp environments
- Power Supply: 230 V AC, 50 Hz
- Construction Material: Flame-retardant thermoplastic housing in white finish

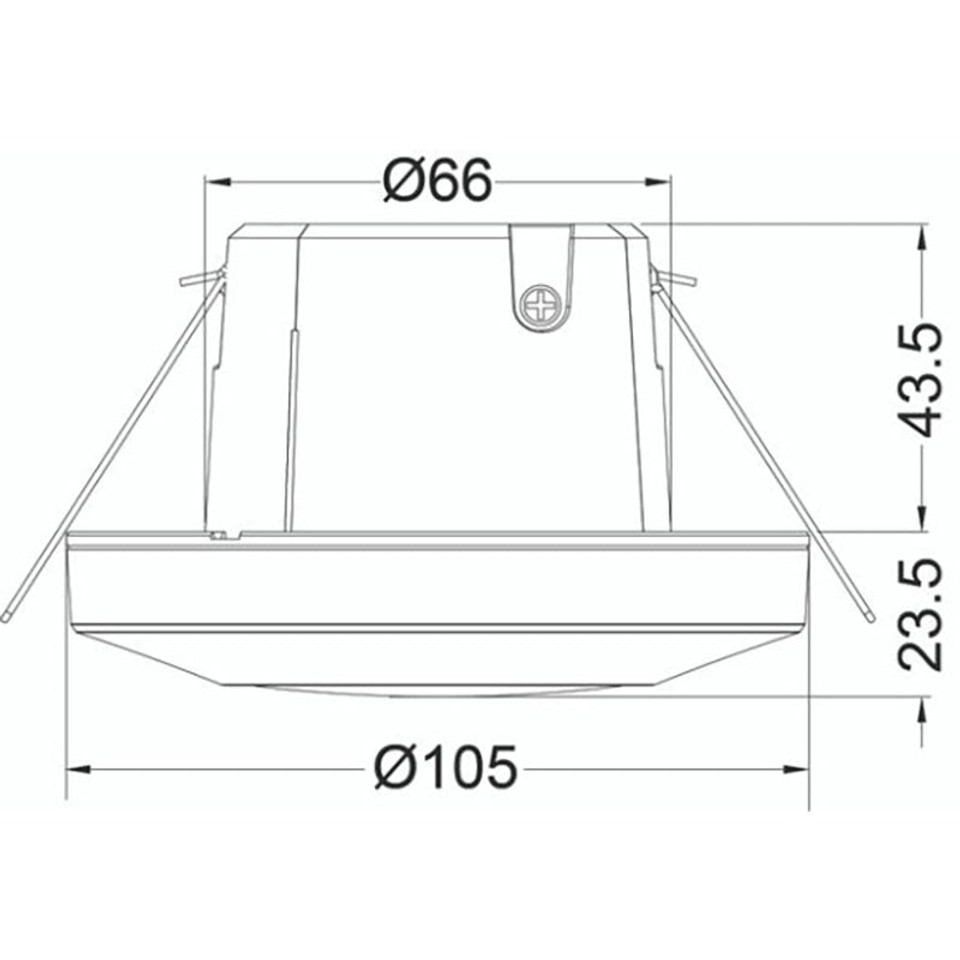

- Dimensions: Approx. 108 mm (diameter) × 68 mm (depth)
- Certifications: CE and UKCA approved; complies with BS EN safety and EMC regulations
- Warranty: 3-year manufacturer’s guarantee

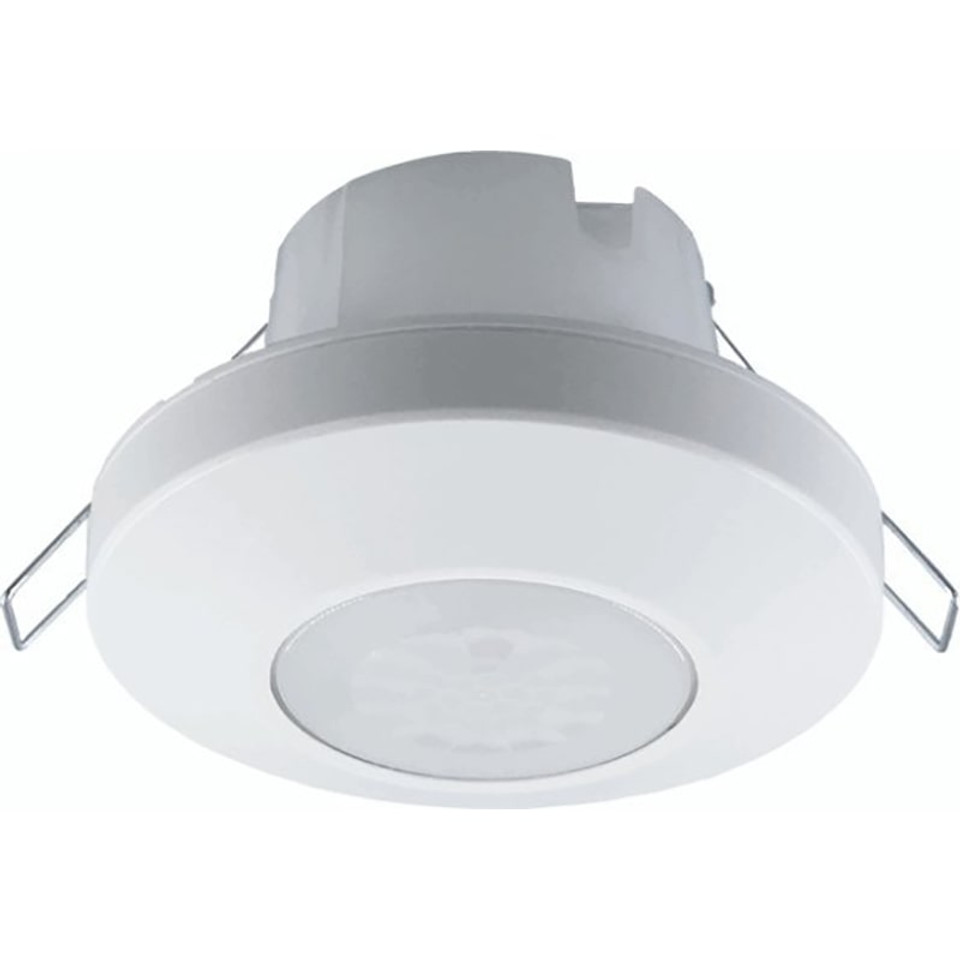

Timeguard PDFM362AB 2 Channel 360° PIR Flush Mount
Dual Channel 360° Motion Detection for Precision Lighting Control
The Timeguard PDFM362AB 2 Channel 360° PIR Flush Mount Detector delivers advanced motion sensing for commercial, industrial, and public environments. With its dual-channel control, you can independently manage two lighting circuits or zones from a single, discreet unit, providing flexibility and enhanced energy efficiency. Designed for spaces where accuracy, coverage, and reliability are essential, this detector ensures lights operate only when needed, reducing energy costs while improving convenience.
Sleek Flush-Mount Design for Seamless Integration
Crafted for flush ceiling installation, the PDFM362AB blends effortlessly into any environment, maintaining a clean, unobtrusive appearance. Its 360° coverage ensures every corner of the room is monitored without blind spots. Built with durability in mind, it’s ideal for high-traffic commercial spaces, educational institutions, offices, and hospitality venues where both aesthetics and performance matter.
Adjustable Settings for Tailored Performance
The Timeguard PDFM362AB features fully adjustable time delay and lux sensitivity controls, enabling precise customisation to match your lighting control requirements. Whether you need responsive presence detection or absence mode for manual activation, this detector offers the flexibility to optimise performance for maximum efficiency and comfort.
