Specifications:
- Product Type: Flush-mounted single-channel PIR presence/absence detector for automatic lighting and energy management
- Detection Coverage: 360° area detection with up to 7 m radius (subject to mounting height and sensitivity setting)
- Detection Method: Passive infrared (PIR) sensing for motion and occupancy control
- Mounting Height: Optimised for ceiling installation at 2.5 m to 3.5 m
- Load Capacity:
- Resistive loads up to 10 A (2300 W)
- LED/fluorescent lighting up to 6 A
- Compact fluorescent up to 6 A
- Time Delay Adjustment: Adjustable run-on time from 10 seconds to 30 minutes
- Light Level Adjustment: Configurable daylight threshold between 10–2000 lux
- Control Modes: Presence mode (automatic on/off) or absence mode (manual on/automatic off) selectable
- Ingress Protection Rating: IP40 – suitable for indoor use only
- Power Supply: 230 V AC, 50 Hz
- Construction Material: Durable, flame-retardant thermoplastic housing in white finish

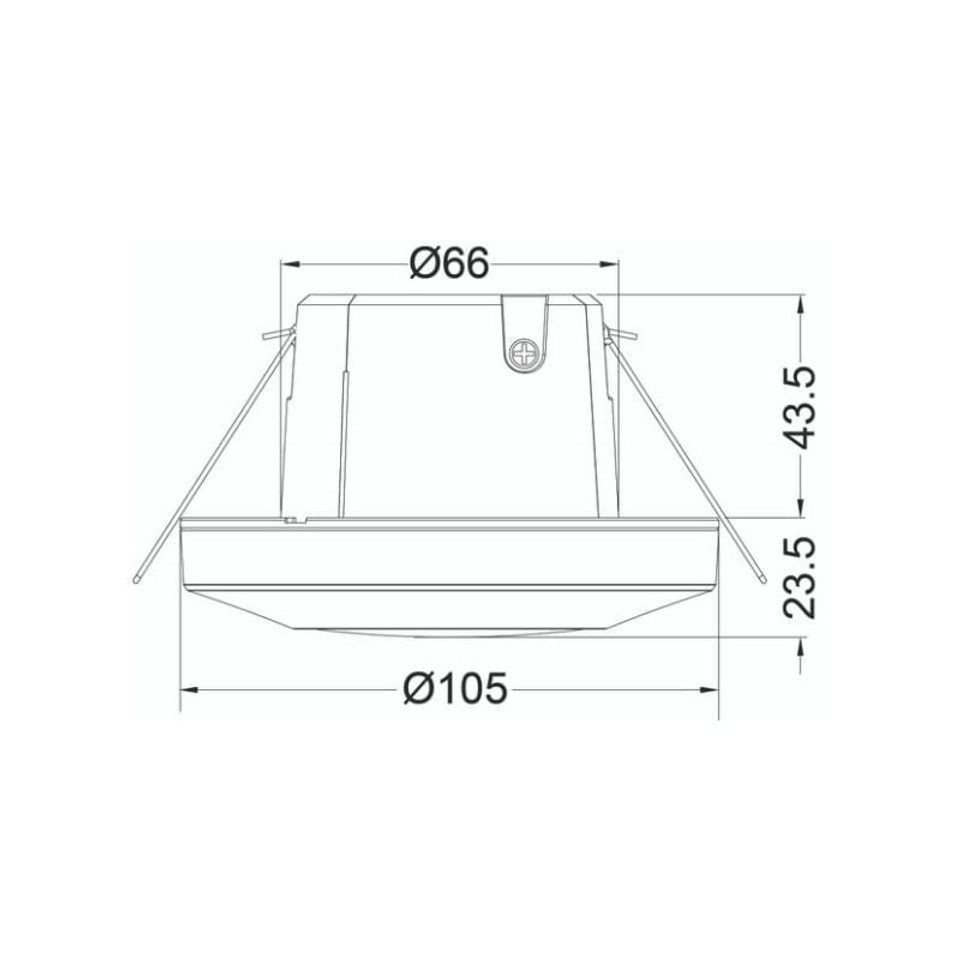

- Dimensions: Approx. 108 mm (diameter) × 68 mm (depth)
- Certifications: CE and UKCA approved; meets BS EN safety and EMC requirements
- Warranty: 3-year manufacturer’s guarantee

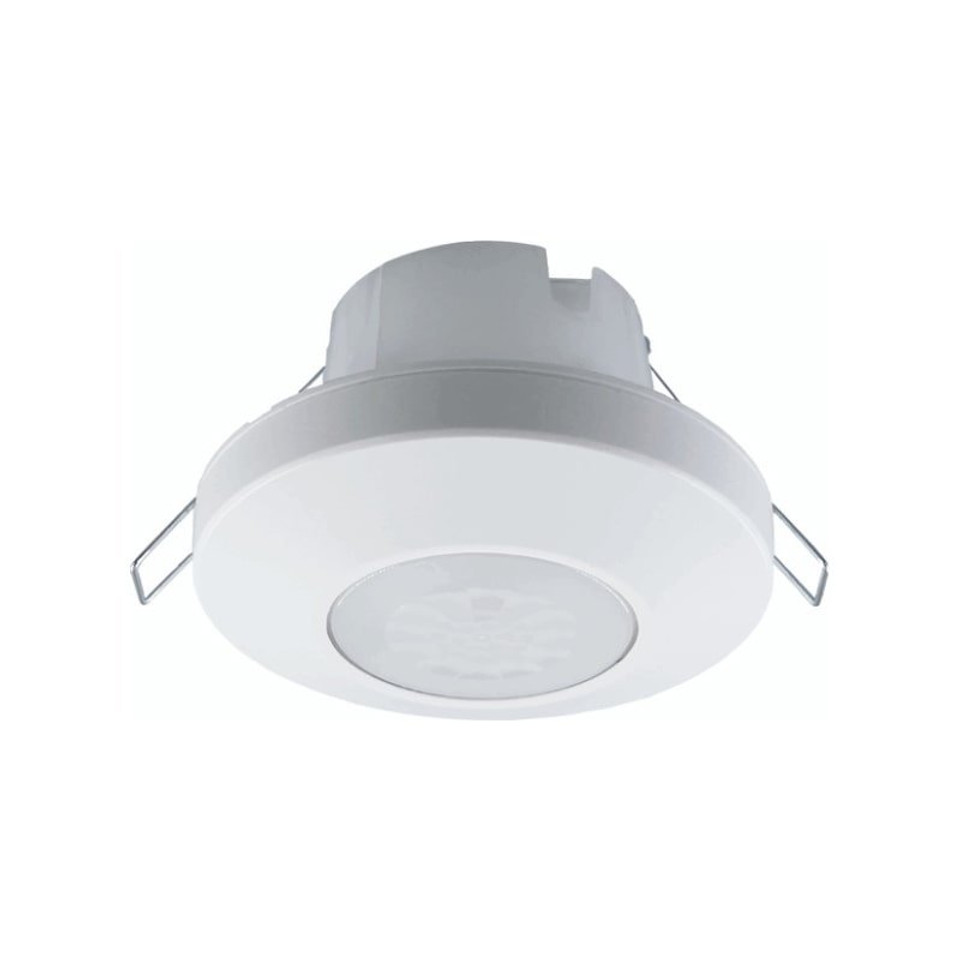

Timeguard PDFM361AB Single Channel 360° PIR Presence/Absence Detector – Flush Mount
Full 360° Coverage for Intelligent Lighting Control
The Timeguard PDFM361AB Single Channel 360° PIR Presence/Absence Detector offers precision-engineered motion sensing to optimise energy usage and enhance comfort. With a full 360° detection range, it activates lighting when movement is detected and turns it off when spaces are vacant. Designed for offices, classrooms, meeting rooms, and other commercial or public spaces, this detector is a key solution for lowering energy costs while maintaining convenience.
Discreet Flush-Mount Design in White
Featuring a low-profile flush-mounted design, the PDFM361AB blends seamlessly into ceilings for a clean, modern look. The white finish ensures it complements any décor, making it ideal for environments where aesthetics matter as much as performance. Its durable build guarantees reliable long-term operation, whether installed in new builds or retrofit projects.
Customisable Settings for Maximum Efficiency

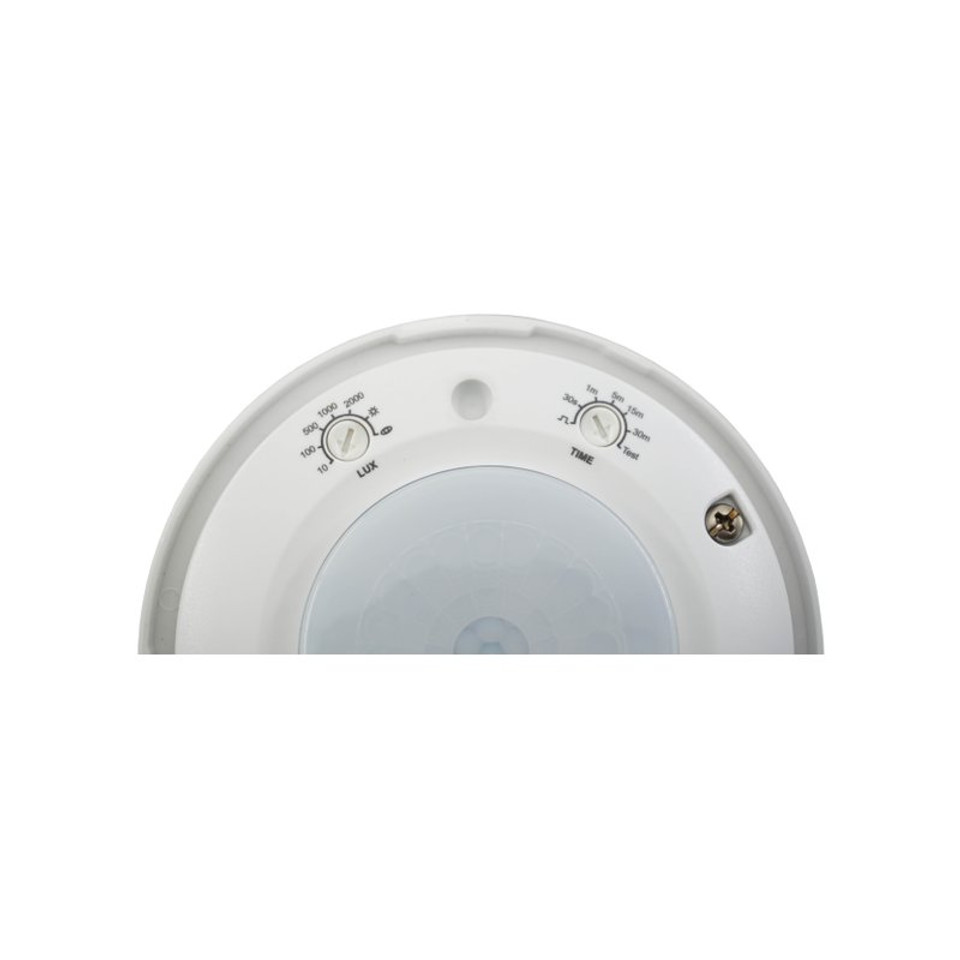

The Timeguard PDFM361AB includes fully adjustable time delay and lux level sensitivity controls, giving you complete flexibility to match lighting operation to your space’s needs. Its intelligent presence and absence detection improves user comfort while meeting energy efficiency standards. Perfect for facility managers and electricians seeking reliable, low-maintenance lighting control solutions.
