Specifications:
- Product Type: Flush-mounted passive infrared (PIR) motion and presence detector with integrated lighting control
- Detection Coverage: 360° field of view with up to 7 m detection radius (at 2.8 m mounting height)
- Detection Method: PIR sensor activated by movement and temperature changes
- Load Capacity:
- Resistive loads up to 1500 W (230 V AC)
- Fluorescent/LED loads up to 1000 W
- Time Delay Adjustment: Adjustable from approx. 10 seconds to 30 minutes
- Light Level Adjustment: Adjustable daylight sensitivity from 10–2000 lux
- Mounting Type: Flush ceiling installation for a low-profile appearance
- Power Supply: 230 V AC, 50 Hz
- Ingress Protection Rating: IP40 – suitable for indoor use
- Operating Temperature Range: –10 °C to +40 °C
- Construction Material: Durable, flame-retardant polycarbonate in white finish
- Cut-out Size: Approx. 63 mm diameter

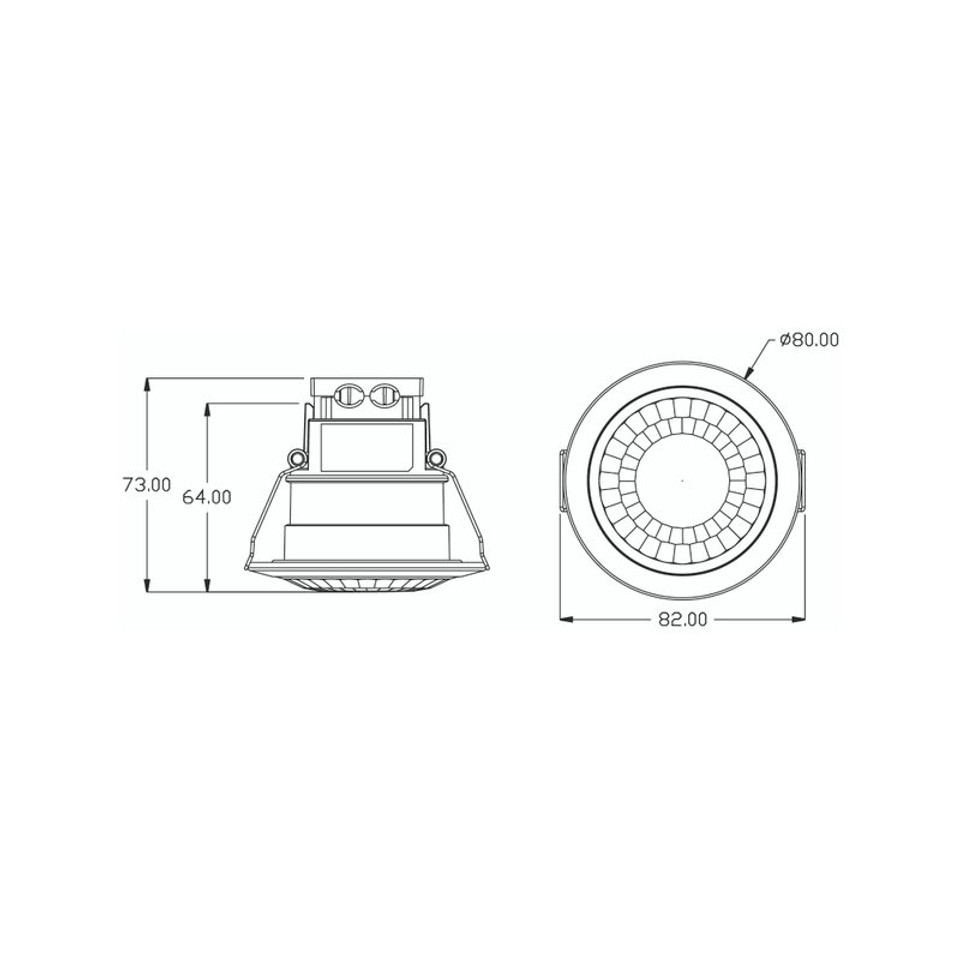

- Dimensions: Approx. 80 mm (visible diameter) × 50 mm depth
- Certifications: CE and UKCA approved; compliant with EN safety and EMC standards
- Warranty: 3-year manufacturer’s guarantee

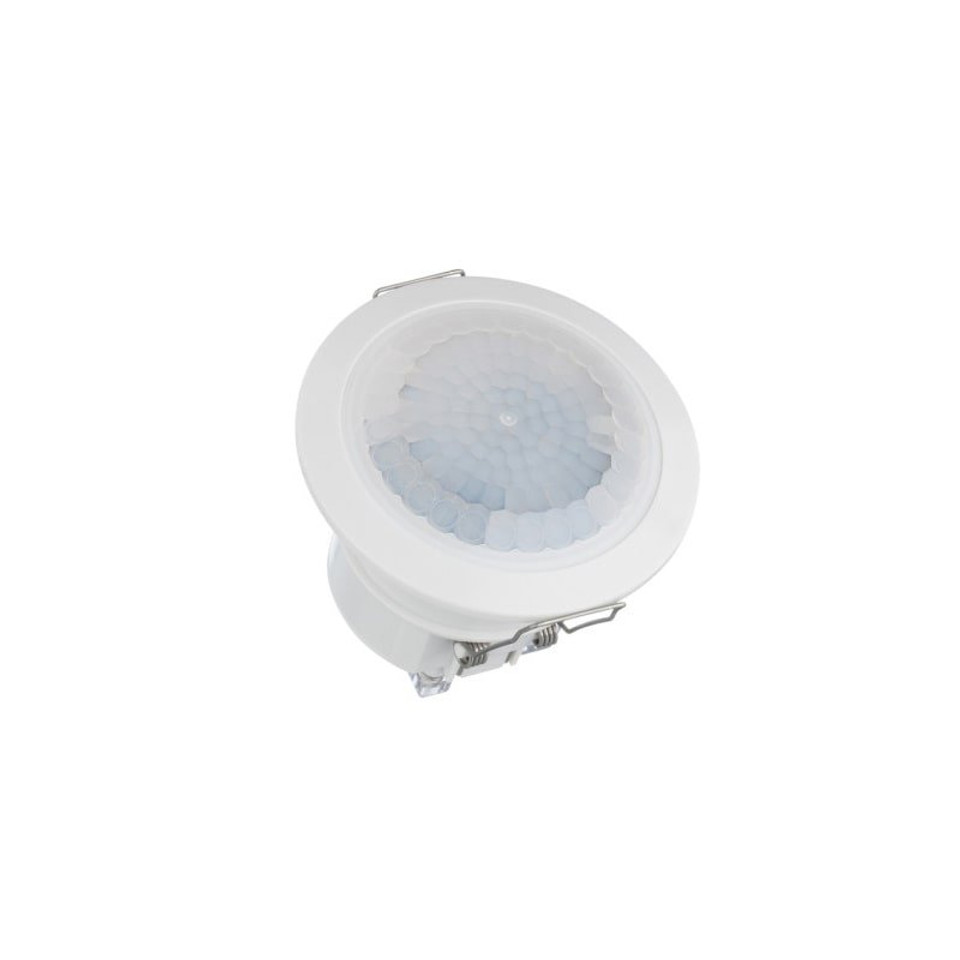

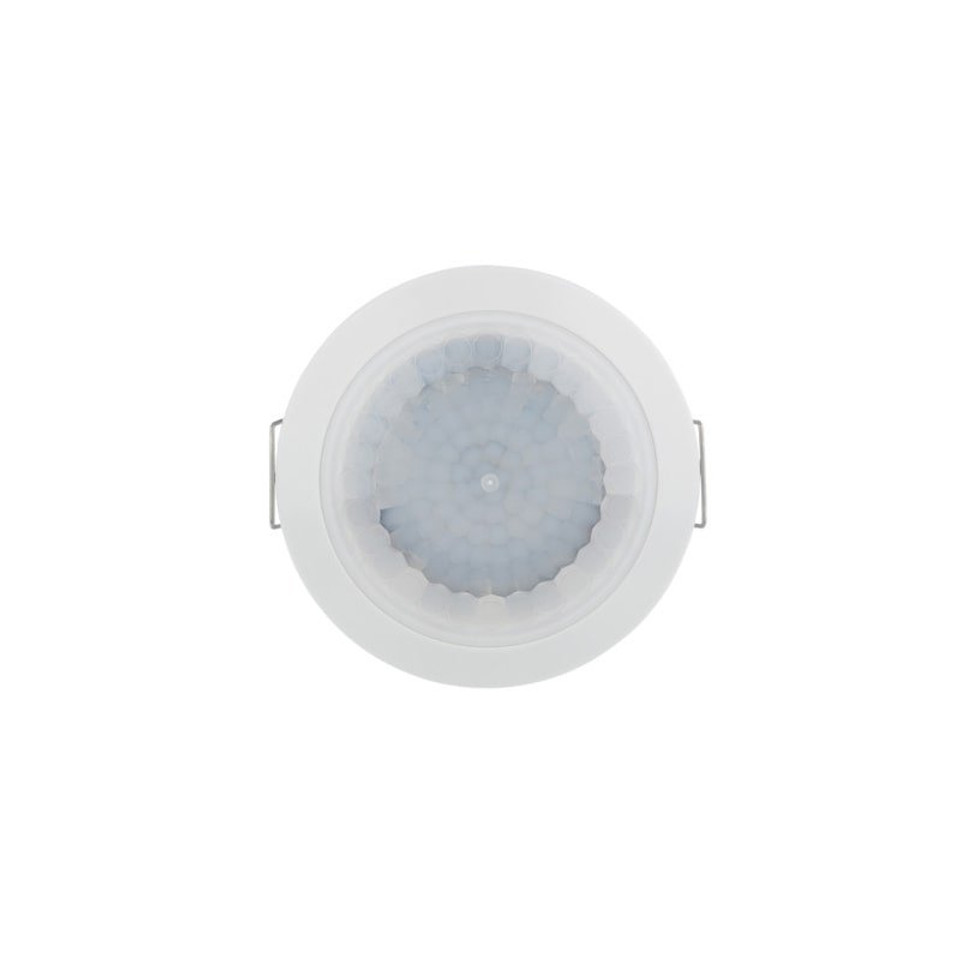

Timeguard PDFM1500N 360° Flush Mount PIR Presence Detector & Light Controller
Seamless 360° Detection for Complete Coverage
The Timeguard PDFM1500N 360° Flush Mount PIR Presence Detector & Light Controller delivers precise, all-round motion and presence detection to ensure your lighting responds exactly when needed. Designed to provide full 360° coverage, it eliminates dead zones and is perfect for offices, corridors, classrooms, and communal areas. By sensing both presence and movement, it ensures lights stay on when the space is in use and automatically switch off when vacant, helping to cut energy costs without compromising comfort.

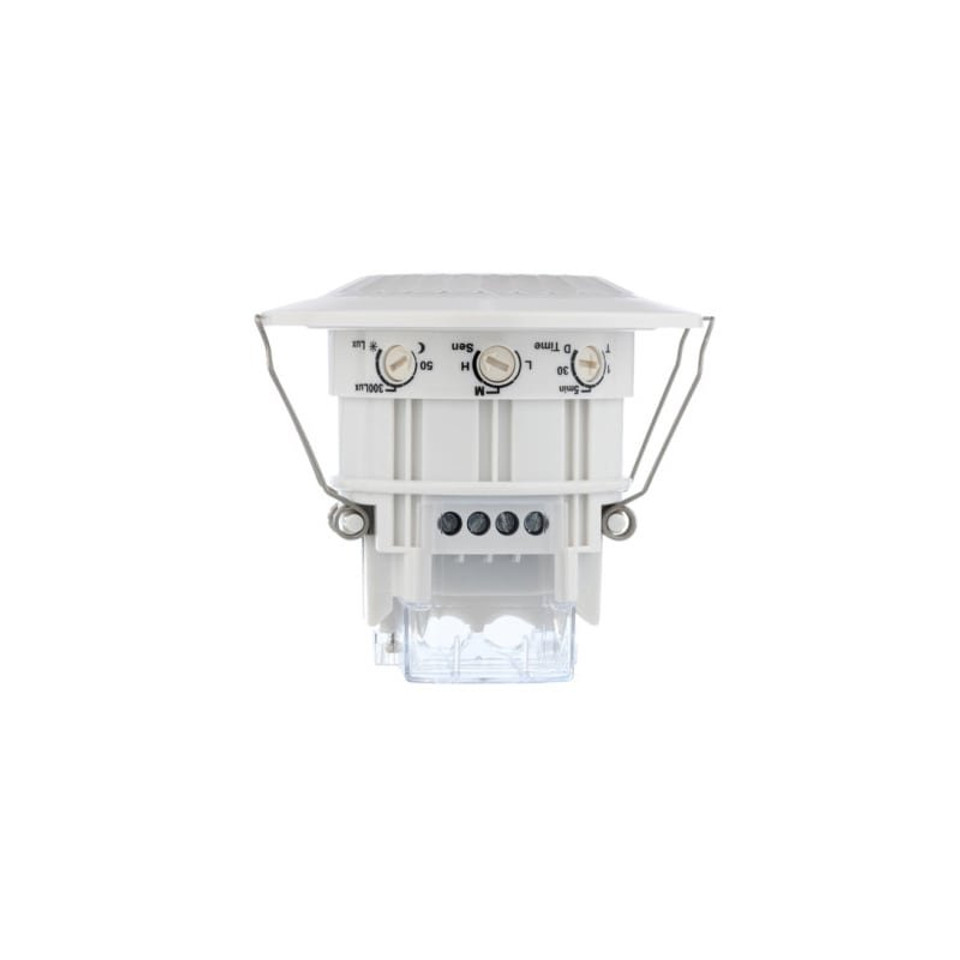

Smart, Adjustable Lighting Control
This advanced PIR light controller offers fully adjustable time delay and lux level settings, allowing you to customise light activation based on occupancy and ambient light levels. Compatible with LED, fluorescent, and other lighting types, it’s ideal for a wide range of commercial, educational, and residential applications. The PDFM1500N helps create a smarter lighting environment that works seamlessly in the background, maximising convenience and energy efficiency.

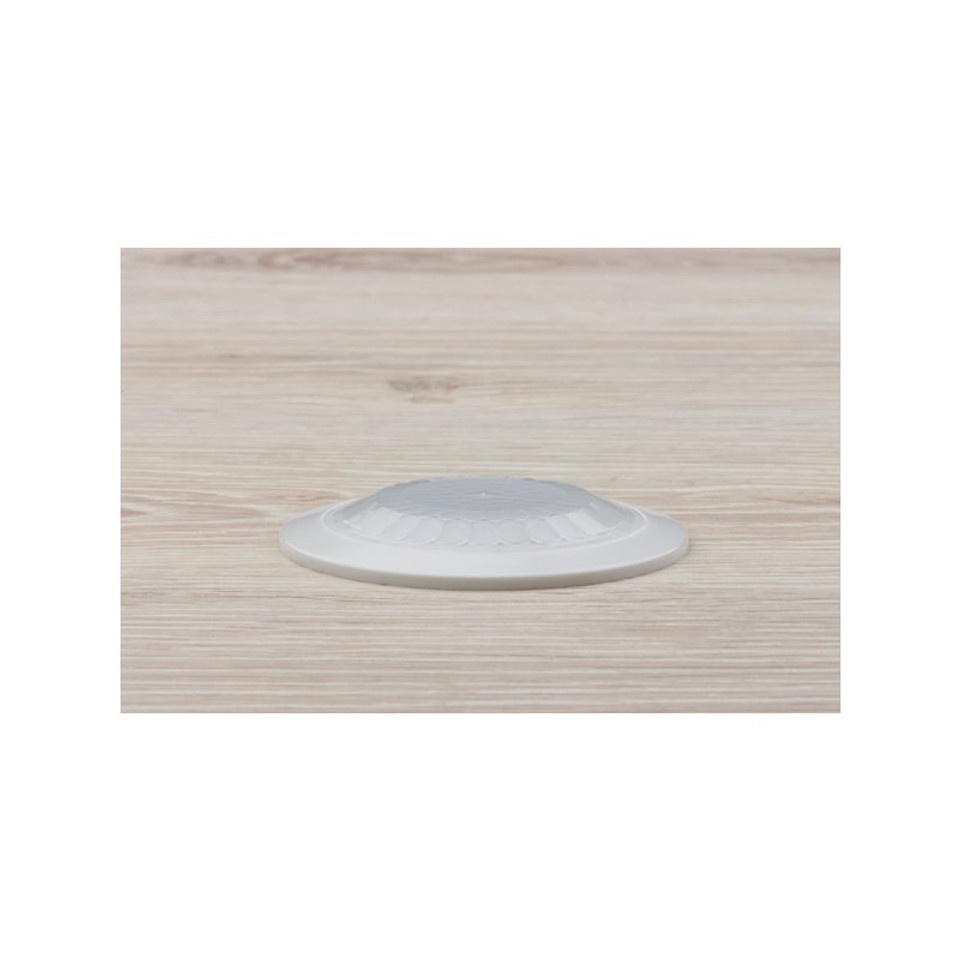

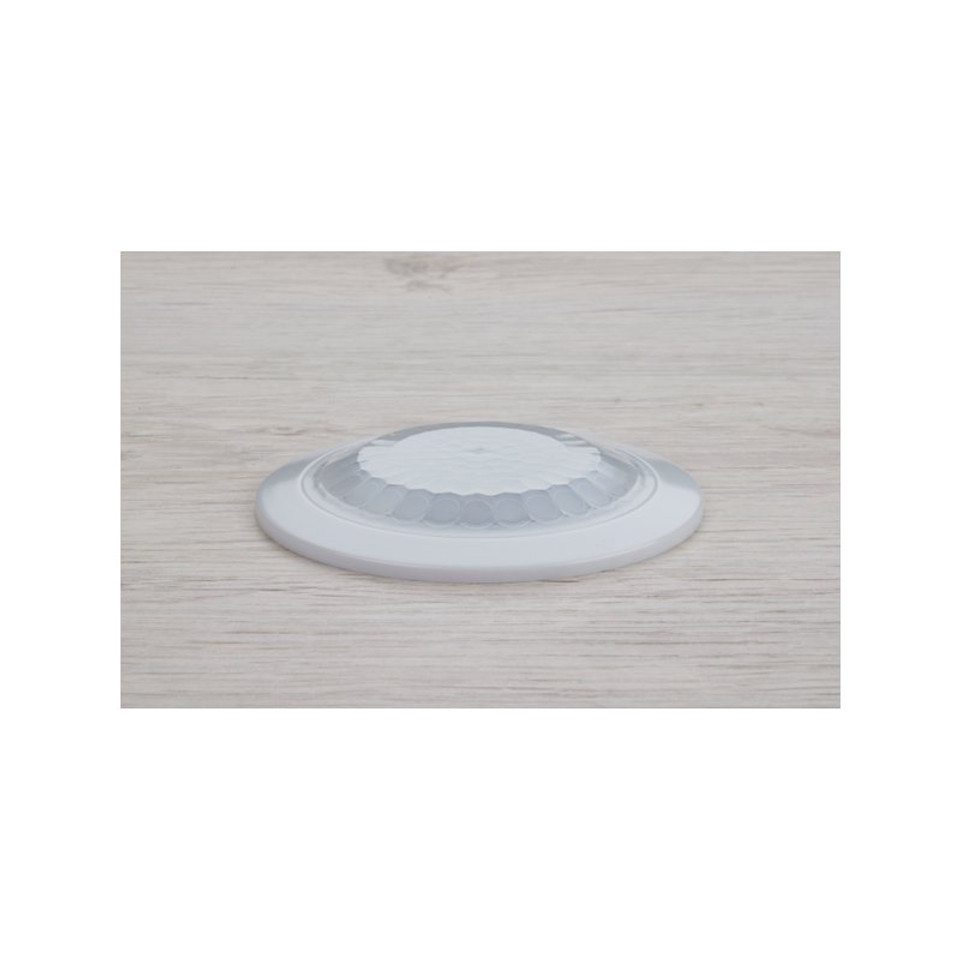

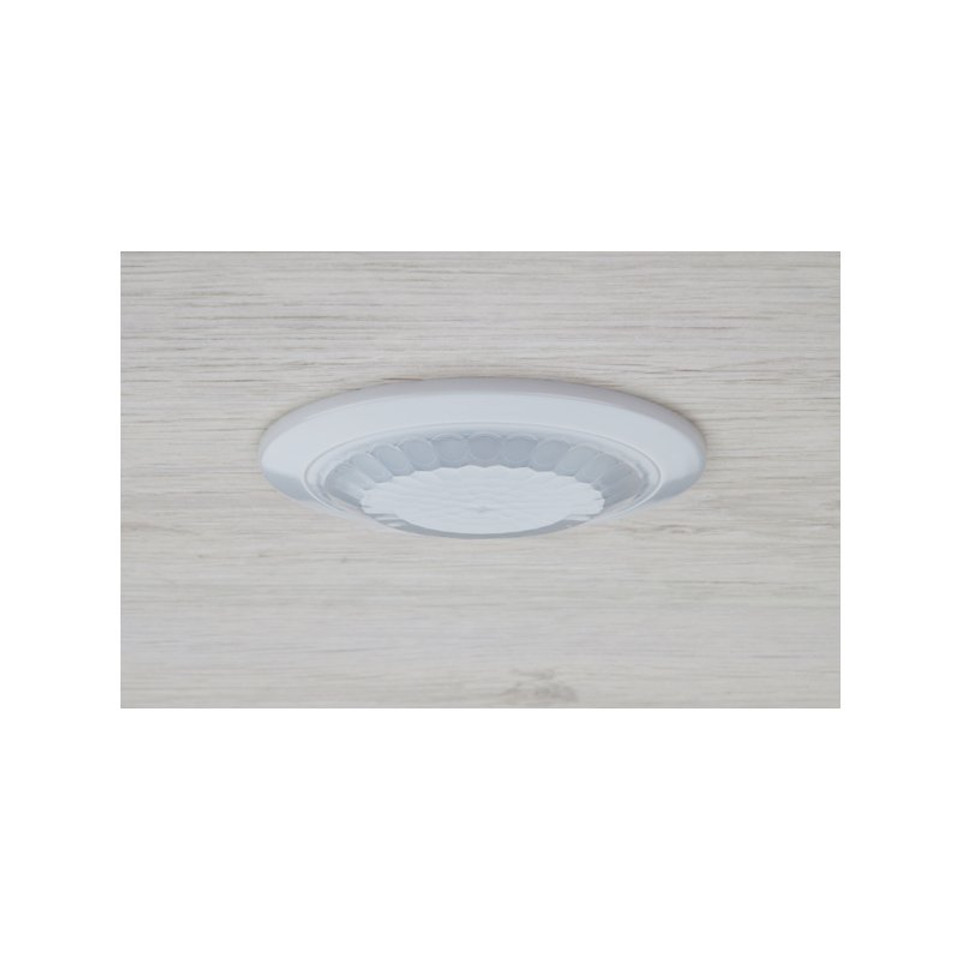

Discreet Flush Mount Design for a Modern Finish
Built with a sleek, low-profile design, the Timeguard PDFM1500N mounts flush to the ceiling for an unobtrusive look that blends perfectly with any interior. Installation is quick and straightforward, making it an excellent choice for both new projects and upgrades. Its robust construction ensures reliable long-term performance, making it a dependable solution for professional lighting control.
Download the Product Data Sheet
