Specifications:
- Product Type: Multiway PIR presence detector and light controller for automatic lighting control
- Detection Range: 360° coverage with up to 7 m diameter detection area (at 2.5 m mounting height)
- Mounting Type: Suitable for ceiling surface mounting
- Load Capacity: Up to 3,000 W resistive / 2,000 W inductive load
- Multiway Operation: Allows interconnection with multiple PIR units for extended coverage and linked control
- Time Delay Adjustment: Adjustable run-on time from 10 seconds to 30 minutes
- Lux Level Adjustment: Adjustable light level threshold (approx. 10–1,000 lux) for daylight sensitivity control
- Construction Material: Durable, flame-retardant polycarbonate housing
- Colour Finish: White
- Ingress Protection Rating: IP55 – suitable for indoor and sheltered outdoor use
- Cable Entry: Multiple wiring terminals for flexible installation
- Power Supply: 230 V AC, 50 Hz
- Operating Temperature Range: –20 °C to +40 °C
- Applications: Ideal for energy-saving lighting control in corridors, offices, entrances, and communal areas
- Warranty: 3-year manufacturer’s guarantee

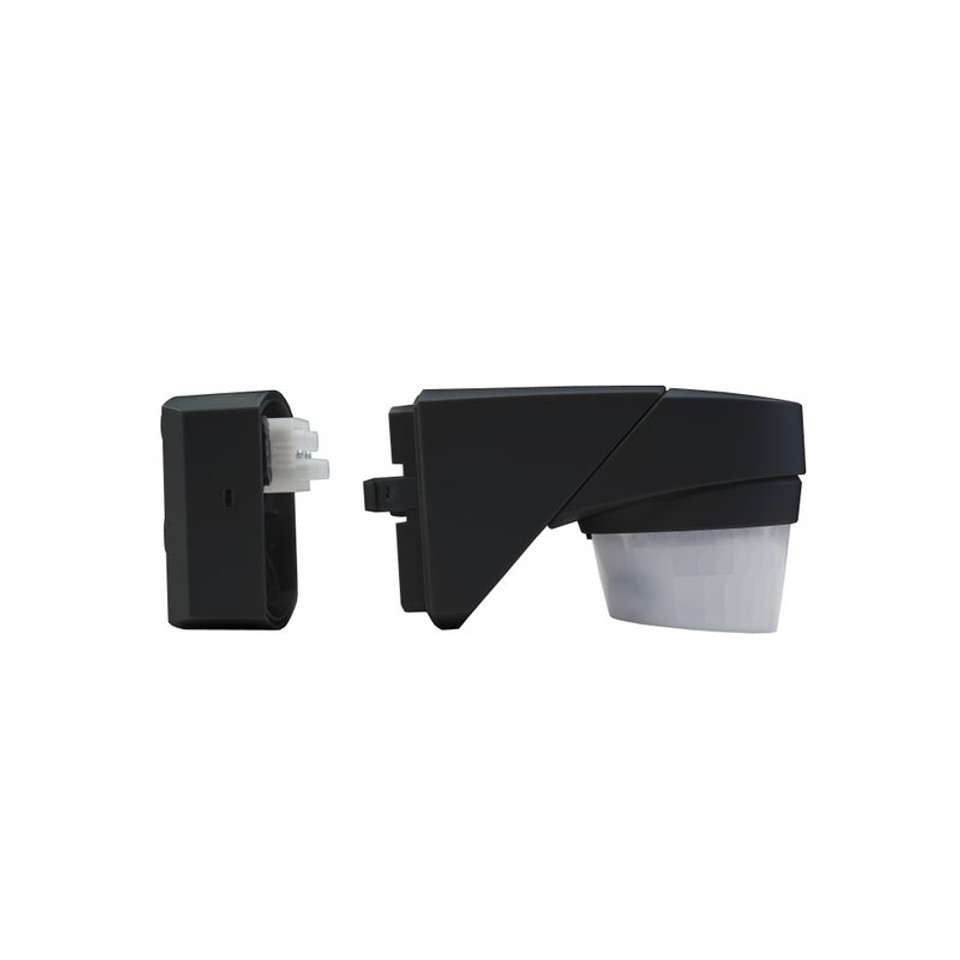

Timeguard MLSA360NP Multiway PIR Light Controller
Advanced Multiway PIR Light Control for Complete Coverage
The Timeguard MLSA360NP Multiway PIR Light Controller delivers intelligent motion-activated lighting for both commercial and residential environments. Designed to detect movement in a full 360° radius, it ensures your spaces are well-lit only when required, enhancing safety while saving energy. Its multiway capability allows you to link multiple sensors, ensuring consistent coverage across large areas such as offices, warehouses, corridors, and communal spaces.
Energy-Efficient Lighting Automation with Precision Sensing
Equipped with a highly sensitive PIR motion sensor, the MLSA360NP responds instantly to movement, activating connected lighting and switching off automatically after a set delay. This intelligent automation reduces unnecessary energy usage, extending lamp life and lowering running costs. Whether for indoor or sheltered outdoor applications, its accurate detection helps create a secure and efficient lighting system without the need for manual switching.
Flexible Installation and Reliable Performance
Built for professional use, the Timeguard MLSA360NP is compatible with a wide range of lighting types, including LED, fluorescent, and halogen. Its discreet, modern design blends seamlessly into any environment, while easy-to-adjust time and sensitivity settings allow custom operation to suit your needs. Designed for long-term durability, it ensures consistent and dependable performance, making it a cost-effective investment in smarter lighting control.
