Specification:

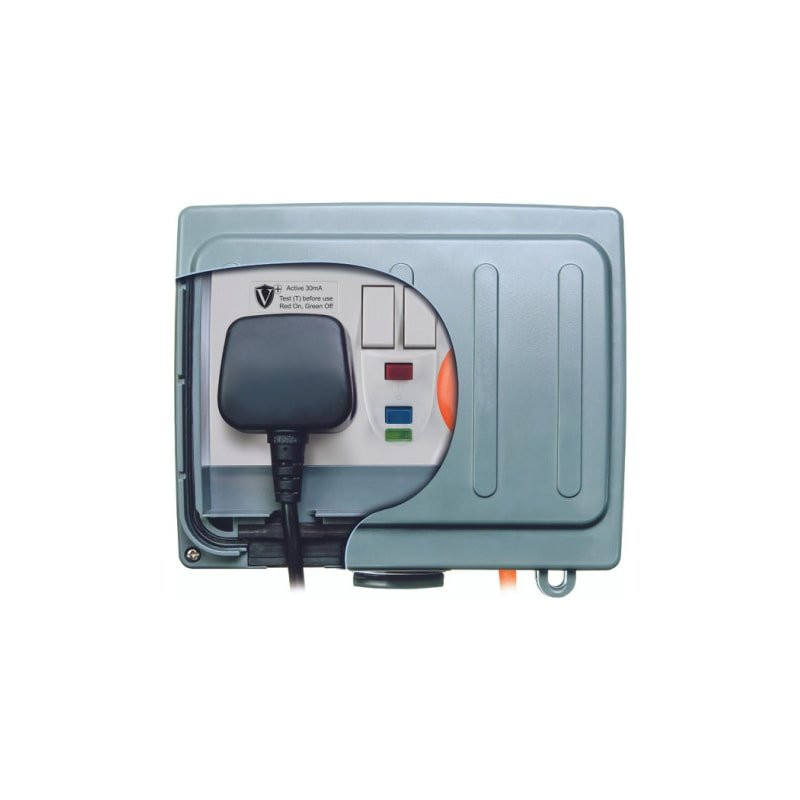

- Product Type: Outdoor-protected twin switched socket with integral active RCD protection
- Socket Configuration: Two UK-style switched outlets rated at 13 A each (BS 1363 compliant)
- RCD Protection: Built-in 30 mA residual-current device (active mode – protects both live and neutral)
- Rated Load: 13 A resistive per socket (up to ~3 kW), 2 A inductive compatible
- Ingress Protection: IP66 – fully sealed against dust and high-pressure water jets
- Construction Material: UV-stabilised, flame-retardant polycarbonate housing with gasketed hinged lid and padlock facility
- Switch Mechanism: Neon-illuminated rocker switches visible under weather-sealed lid
- Cable Entry: Multiple M25 knock-out entries with sealing grommets for secure wiring
- Fuse Unit: Replaceable 13 A BS1362 fuse per outlet enclosed inside the sealed box
- Power Supply: 230 V AC, 50 Hz; Class II (double-insulated) — no earth required
- Operating Temperature Range: –25 °C to +55 °C — ideal for exposed environments
- Installation: Surface-mounted with mounting lugs and templated fixings included
- Dimensions: Approx. 185 mm (W) × 125 mm (H) × 95 mm (D)
- Certifications: CE and UKCA marked; complies with all pertinent BS EN standards for RCD sockets
- Warranty: 3-year manufacturer’s guarantee
