Specifications:
- Suitable for outdoor use
Neon indicator for "On" or "Off" status
1 gang, 2-way switch
Rated for 20AX inductive loads
20 Amps
IP66 rating
Single pole
Clearly marked terminals
Backed-out captive screws
Screw covers for fixing
Earth terminal in the mounting box
Cable entries on all four sides with removable blanking caps
Terminal capacity: 4x 1.0mm², 4x 1.5mm², 2x 2.5mm², 1x 4.0mm²
Minimum contact gap: 3.0mm
Grey colour
Dimensions: 91mm (H) x 91mm (W) x 67mm (D)
Complies with BS EN 60669-1 standards
Description:

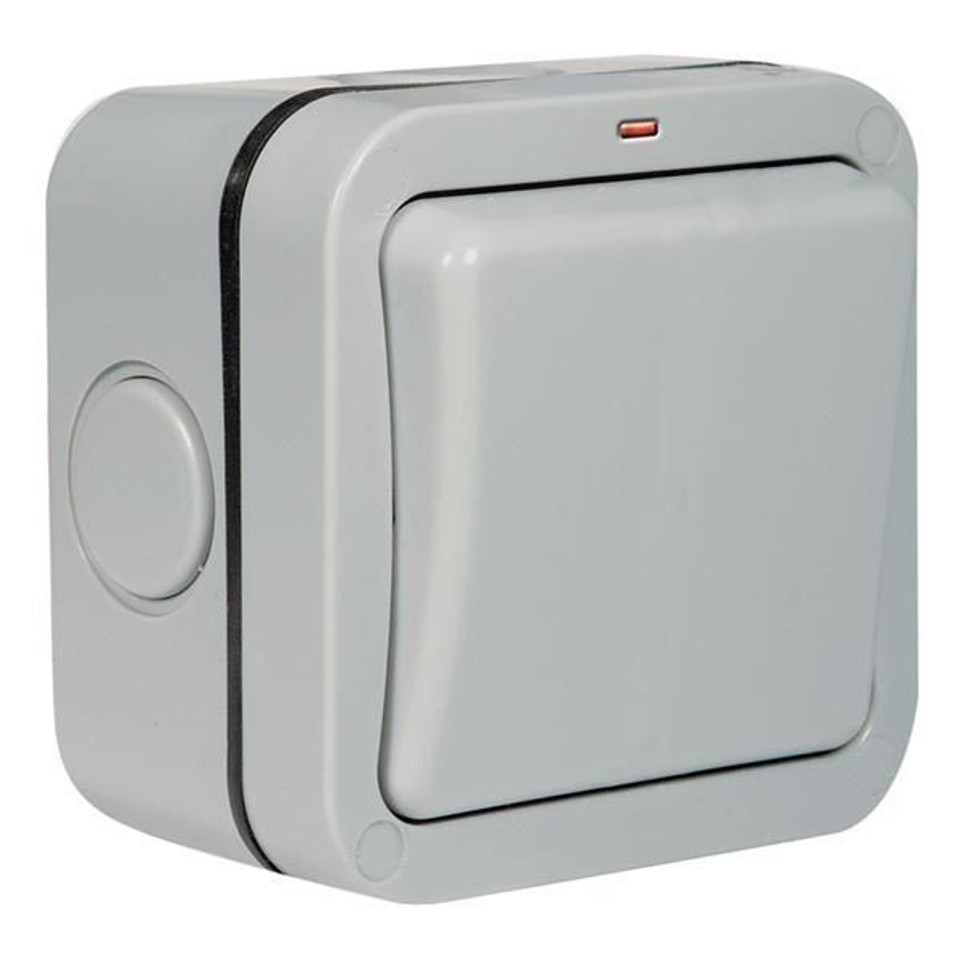

The BG Electrical WP12 Single 2-Way Outdoor Weatherproof Switch is perfect for outdoor lighting and power control. Rated at 20A, it’s designed to handle heavy-duty use with a robust build. The IP66 rating ensures it is completely protected from dust and water, making it ideal for harsh weather conditions. The neon indicator can be wired to show the "On" or "Off" status, adding convenience. This switch features a 1 gang, 2-way function and a single pole design. With clearly marked terminals and backed-out captive screws, installation is easy and secure. It also includes fixing screw covers and an earth terminal in the mounting box. Cable entries are available on all four sides with removable blanking caps, providing flexibility for various installations.
