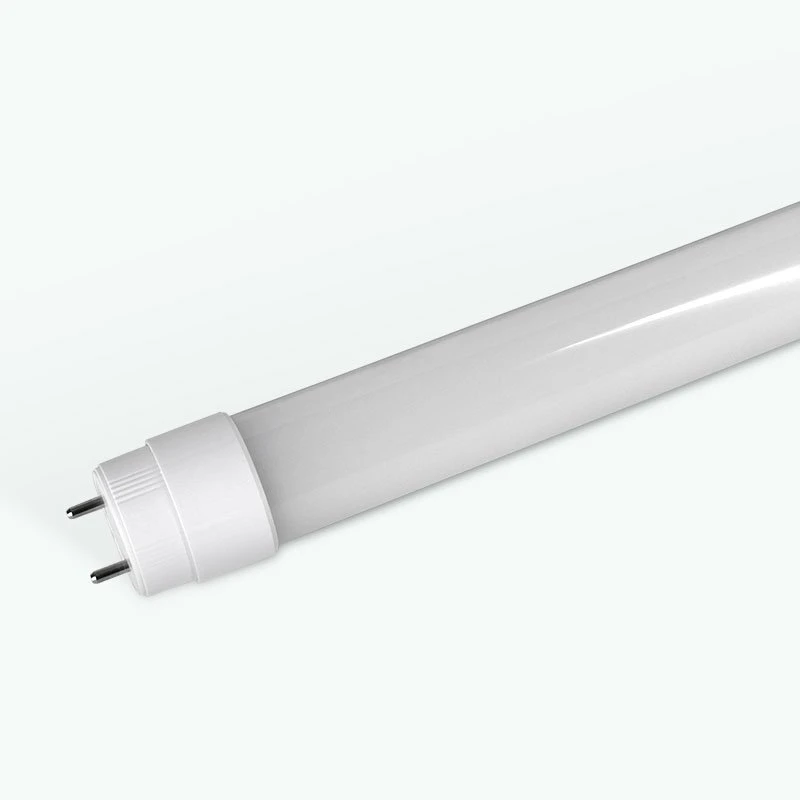

Heathfield Yew 6ft LED T8 Tube, Emergency Compatible, 26W, 6000K daylight
Emergency fittings are often the last fluorescent tubes left in a building, because most LED tubes have no way to take an emergency supply. The Yew does: it runs from the mains day to day and has a separate emergency input at the other end, so a 6ft emergency fitting can move to LED without being replaced. It gives 2600 lumens from 26W and starts instantly with no flicker or hum.
How it wires
Single-end fed: mains live and neutral go to the end marked with the label, and the emergency supply connects to the opposite, non-label end. It works with the Heathfield LED emergency conversion pack, which gives 3 hour battery backup. The fitting's fluorescent ballast and starter are taken out of circuit, so the conversion must be done by a qualified electrician, the fitting labelled as converted to LED, and the emergency lighting tested in line with BS 5266.
Specification
- Length: 1800mm, T8 with G13 caps
- Power: 26W, input 85-277V
- Light: 2600 lumens, 6000K daylight, 120 degree beam, CRI 80
- Epistar 3528 LED chips, rotatable end caps so the light can be aimed
- Rated life over 50,000 hours, operating -10C to +65C, non-dimmable, CE and RoHS
- Part number: 6F26LED/DAY/E
