Specifications:
- Product Type: Heavy-duty DC rotary isolator switch for outdoor and industrial applications
- Number of Poles: 4-pole switching for multi-circuit or positive/negative DC isolation
- Rated Current: 32 A DC continuous load capacity
- Voltage Rating: Suitable for low-voltage DC systems up to manufacturer-specified limits (e.g., solar PV, battery storage)
- Ingress Protection Rating: IP66 – fully dust-tight and protected against powerful water jets, suitable for outdoor use
- Enclosure Material: UV-resistant, high-impact polycarbonate housing with weatherproof sealing
- Switch Mechanism: Robust rotary handle with clear ON/OFF position markings; padlockable in OFF position for safety
- Terminals: Screw-clamp type with generous wiring space for secure cable termination
- Cable Entry: Multiple M20/M25 knock-outs with sealing grommets for flexible conduit or cable gland entry
- Operating Temperature Range: –25 °C to +55 °C – designed for harsh environmental conditions

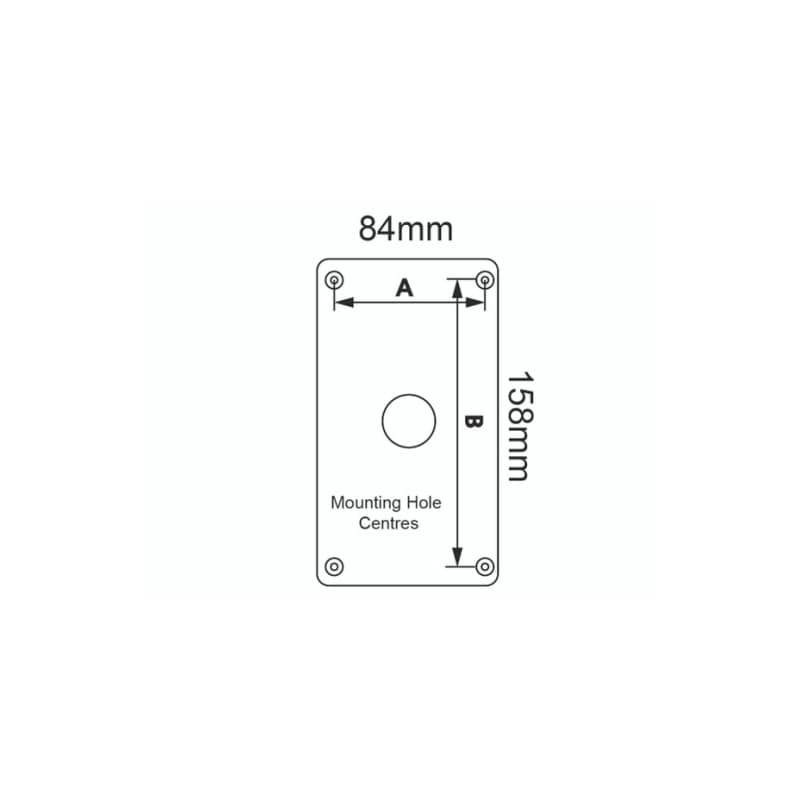

- Mounting: Surface-mount design with pre-drilled fixing points for fast installation
- Standards Compliance: CE and UKCA approved, conforms to relevant BS EN electrical safety standards
- Applications: Ideal for solar PV arrays, battery systems, and other DC power isolation requirements
- Warranty: 3-year manufacturer’s guarantee

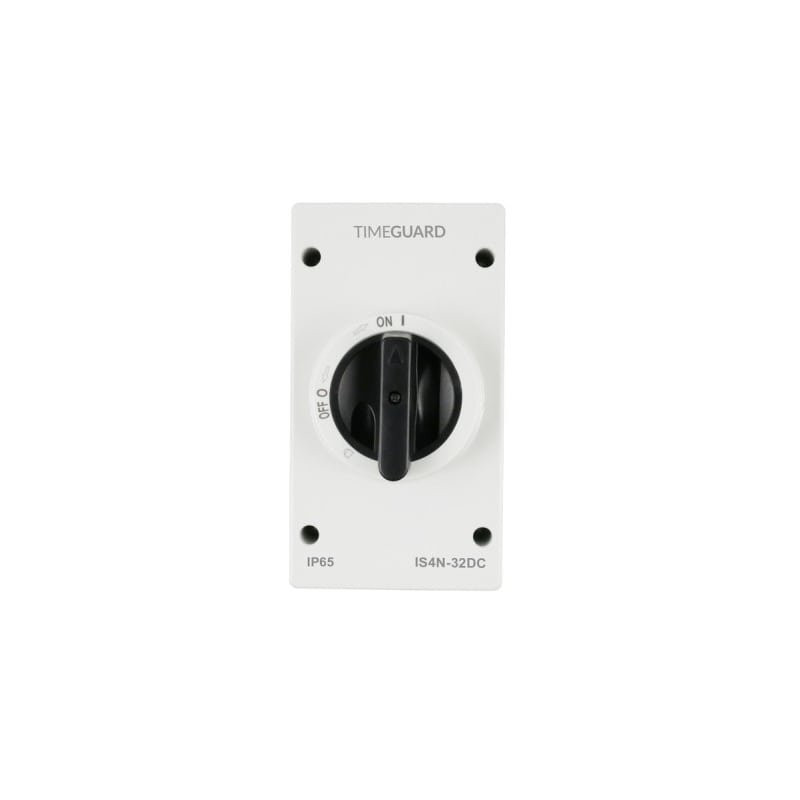

Timeguard IS4N-32DC IP66 Weathersafe 4 Pole 32A DC Rotary Isolator Switch
Heavy-Duty DC Rotary Isolator for Demanding Applications
The Timeguard IS4N-32DC IP66 Weathersafe 4 Pole 32A DC Rotary Isolator Switch is engineered for reliable and safe DC circuit isolation. Built to handle up to 32A, this 4-pole isolator delivers exceptional performance in solar PV systems, battery storage, and other high-load DC applications. Designed to meet stringent safety standards, it provides assured isolation during maintenance and emergency shutdowns, ensuring both user protection and system integrity.
Rugged IP66 Weatherproof Construction
Crafted for outdoor and industrial environments, the IP66-rated housing offers complete protection against dust, dirt, and powerful water jets. The robust enclosure ensures long-lasting performance in harsh conditions, making it ideal for renewable energy installations, marine applications, and heavy-duty machinery. Its corrosion-resistant materials and precision build guarantee durability and consistent operation in even the most challenging locations.
Easy Installation and Secure Operation
The Timeguard IS4N-32DC is designed with user convenience in mind, featuring a lockable rotary handle for secure isolation and enhanced safety compliance. The clear ON/OFF markings allow quick identification, while its compact form makes it suitable for space-limited installations. Pre-drilled mounting points and straightforward wiring terminals make it a go-to choice for professional installers seeking efficiency without compromising safety or reliability.
