Specifications:
- Product Type: Weatherproof rotary isolator switch for secure mains disconnection
- Number of Poles: 4-pole design for multi-phase and neutral isolation
- Rated Current: 32 A continuous load capacity
- Rated Voltage: 230/400 V AC, 50 Hz
- Ingress Protection Rating: IP65 – fully dust-tight and protected against low-pressure water jets
- Switch Mechanism: Rotary handle with positive ON/OFF positions and padlock facility for lock-off safety
- Contact Type: Silver-plated contacts for enhanced conductivity and longevity
- Construction Material: UV-resistant, impact-resistant polycarbonate housing
- Cable Entry: Multiple M20/M25 knock-outs with sealing grommets for secure wiring options
- Mounting: Surface-mount enclosure with pre-drilled fixing points
- Operating Temperature Range: –25 °C to +40 °C
- Dimensions: Approx. 150 mm (H) × 85 mm (W) × 85 mm (D)
- Standards Compliance: CE and UKCA approved, conforms to BS EN 60947-3
- Warranty: 3-year manufacturer’s guarantee

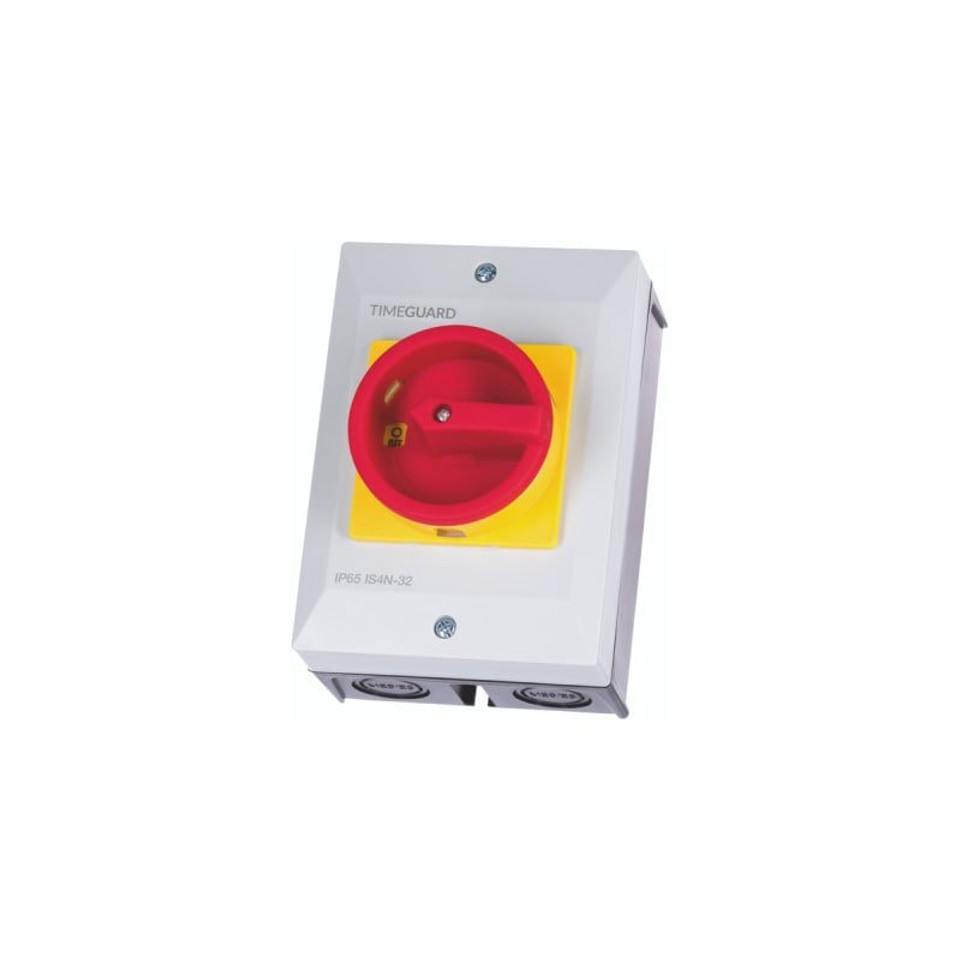

Timeguard IS4N-32 Weathersafe IP65 32A 4 Pole Rotary Isolator Switch
Reliable Heavy-Duty Power Isolation
The Timeguard IS4N-32 Weathersafe IP65 32A 4 Pole Rotary Isolator Switch is designed to deliver safe and dependable control for demanding electrical applications. Perfect for both industrial and commercial environments, it provides a secure method to disconnect power for servicing, repairs, or emergency shutdowns. With a robust 32A capacity, it’s built to handle high-load equipment with confidence.
IP65 Weatherproof Protection for Harsh Environments
Engineered for durability, this isolator switch features an IP65-rated enclosure that resists dust, dirt, and water ingress. Whether exposed to rain, moisture, or heavy industrial conditions, it maintains peak performance. Ideal for outdoor installations, workshops, plant rooms, and construction sites, it ensures lasting protection for both users and electrical systems.
User-Friendly Design with Long-Lasting Performance
Fitted with a smooth-action rotary handle and clearly marked ON/OFF positions, the IS4N-32 offers simple and safe operation. The 4-pole design provides comprehensive circuit isolation, while its rugged build guarantees reliability over many years of use. Easy to install and maintain, it’s a professional-grade solution that puts safety and performance first.
