Specifications:
- Product Type: Weatherproof rotary isolator switch for safe circuit disconnection
- Number of Poles: 4-pole configuration for multi-phase or neutral isolation
- Rated Current: 20 A continuous load capacity
- Rated Voltage: 230/400 V AC, 50 Hz
- Ingress Protection Rating: IP65 – dust-tight and resistant to low-pressure water jets
- Switch Mechanism: Rotary handle with positive ON/OFF positions and padlock facility
- Contact Type: Silver-plated contacts for reliable conductivity and durability
- Construction Material: UV-stabilised, impact-resistant polycarbonate housing
- Cable Entry: Multiple M20/M25 knock-outs with sealing grommets
- Mounting: Surface-mount enclosure with pre-drilled fixing points
- Operating Temperature Range: –25 °C to +40 °C
- Dimensions: Approx. 150 mm (H) × 85 mm (W) × 85 mm (D)
- Standards Compliance: CE and UKCA marked; conforms to BS EN 60947-3
- Warranty: 3-year manufacturer’s guarantee

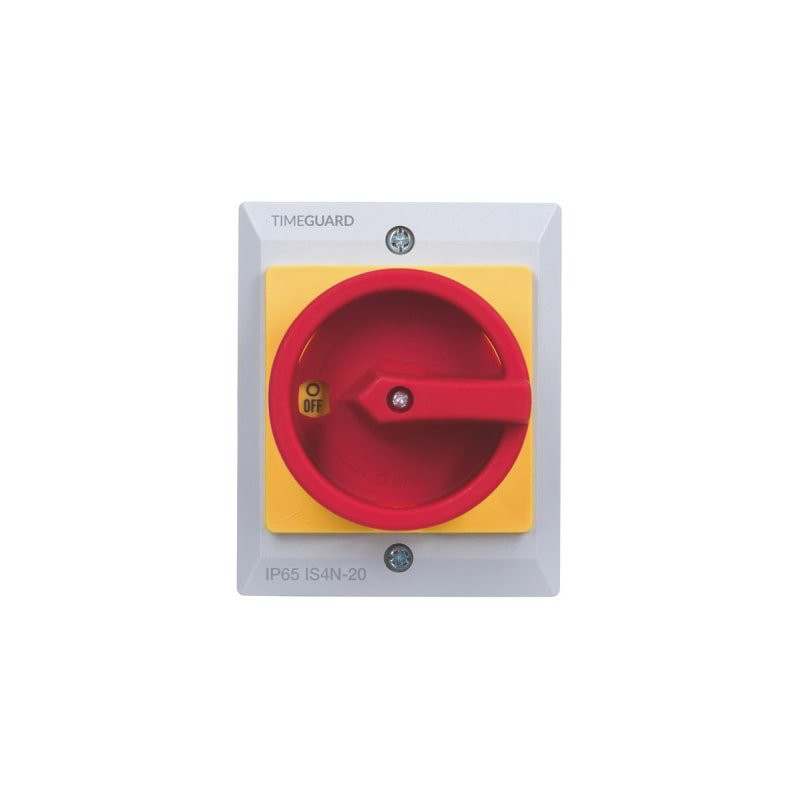

Timeguard IS4N-20 Weathersafe IP65 4 Pole 20A Rotary Isolator Switch
Heavy-Duty Outdoor Power Isolation
The Timeguard IS4N-20 Weathersafe IP65 4 Pole 20A Rotary Isolator Switch provides robust and reliable control over electrical circuits for residential and commercial use. It ensures fast and safe disconnection of power for maintenance, repair, or emergency situations.
IP65 Weatherproof Protection for All Conditions
Designed with a tough weatherproof housing, the switch is rated IP65 to resist dust, rain, and demanding outdoor conditions. Ideal for industrial sites, workshops, and outdoor equipment areas, it protects both the switch mechanism and your electrical system.
Safe, Easy Operation with Long-Term Durability
With a smooth rotary action and clearly marked ON/OFF positions, the IS4N-20 ensures safe, intuitive operation. Its 4-pole, 20A rating supports a wide range of heavy-duty electrical loads, offering dependable isolation with minimal maintenance.
