Specifications:
- Model: Xplus 2 EC
- Part Number: 92498AG
- Type: Multi-Point Mechanical Extract Ventilation (MEV) Unit
- Motor Type: Energy-efficient EC (Electronically Commutated) motor
- Max Airflow: Up to 280 m³/h (77.7 l/s)
- Power Consumption: 2W – 40W depending on airflow demand
- Specific Fan Power (SFP): As low as 0.18 W/l/s
- Speed Control: Fully variable speed with 0–10V or switched live control
- Duct Connections:
- 5 x 100 mm side-mounted extract spigots
- 1 x 125 mm top-mounted exhaust spigot
- Sound Power Level: < 33 dB(A) @ 3 m (at typical airflow)
- Voltage: 230V AC, 50/60 Hz
- Mounting Options: Wall, ceiling, or floor (multi-orientation installation)
- Dimensions (HxWxD): Approx. 270 mm x 360 mm x 170 mm
- Weight: Approx. 3.6 kg
- Construction: Robust ABS plastic housing
- Ingress Protection: IPX4 – Suitable for wet room zones
- Control Compatibility: Can be connected to CO2, humidity, PIR, or temperature sensors
- Compliance: SAP Appendix Q listed, ErP 2018 compliant, CE marked, UKCA compliant
- Ideal For: Whole-house extract systems in new builds, flats, or multi-wet-room dwellings
- Warranty: Manufacturer's standard warranty included

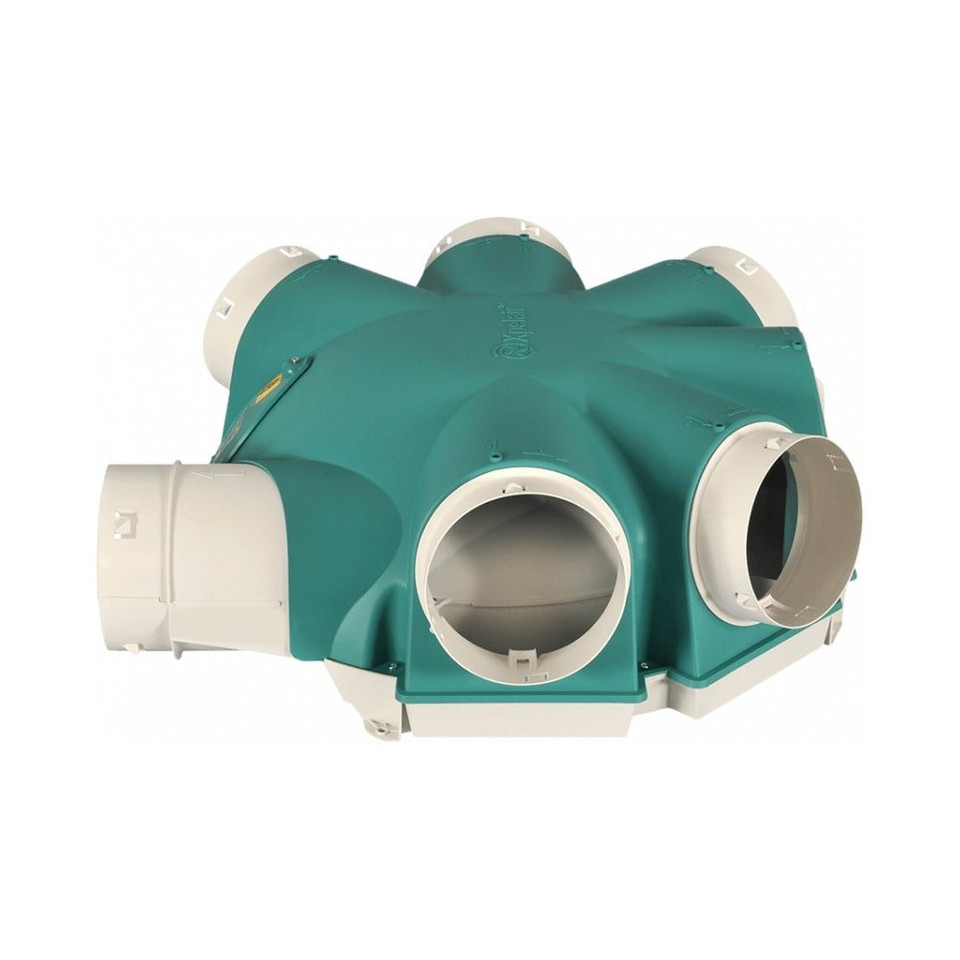

Xpelair Xplus 2 EC Multi-Point Mechanical Extract Ventilation Unit 92498AG
Advanced Whole-House Air Extraction
The Xpelair Xplus 2 EC MEV Unit delivers powerful and efficient ventilation for modern homes and apartments. Designed to extract stale, humid air from multiple rooms simultaneously, this multi-point system ensures optimal indoor air quality while preventing condensation, damp and mould build-up. Ideal for residential properties, student flats, and social housing, it’s a reliable solution for kitchens, bathrooms, utility rooms, and WCs.
EC Motor Technology for Energy Efficiency
Fitted with an energy-efficient EC motor, the Xplus 2 EC outperforms traditional AC systems, offering lower energy consumption, quieter operation, and longer lifespan. The unit supports variable speed settings and is compatible with demand control ventilation systems such as PIR, humidistat, or CO2 sensors. This ensures consistent airflow while adapting to the occupants’ needs—maximising comfort and reducing wasted energy.
Space-Saving, Quiet, and Flexible Installation
Compact and lightweight, this unit can be installed in ceiling voids, cupboards, or loft spaces, making it ideal for new builds or retrofits. Its multi-spigot configuration and versatile mounting options provide easy connection to multiple ducts—offering installation flexibility and minimal disruption. Plus, its quiet operation ensures it performs seamlessly in the background, supporting a peaceful home environment.
