Specifications:
- Device Type: Mechanical thermostat for hot water cylinders or pipes
- Temperature Setpoint Range: Adjustable from 40 °C to 80 °C
- Switch Type & Rating: SPDT (Single Pole Double Throw), rated at 16 A resistive / 4 A inductive at 230 V AC
- Power Supply: 230 V AC, 50 Hz (Class I)
- Operating Temperature Range: 0 °C to +55 °C
- Mounting: Surface-mounted using supplied spring strap for cylinders or alternative strap for pipework
- Setpoint Control: Graduated dial for precise temperature adjustment
- Switching Action:
- One terminal closes on temperature rise
- Second terminal closes on temperature fall
- Construction: Durable polycarbonate enclosure
- Installation Guidance:
- Mount between ¼ and 1/3 of the height from the base of the hot water cylinder
- Suitable for foam-lagged and uninsulated tanks
- ErP Class: Compliant with Class 1 energy-related product regulation
- Dimensions: Approx. 110 mm × 45 mm × 55 mm
- Warranty: 3-year manufacturer guarantee

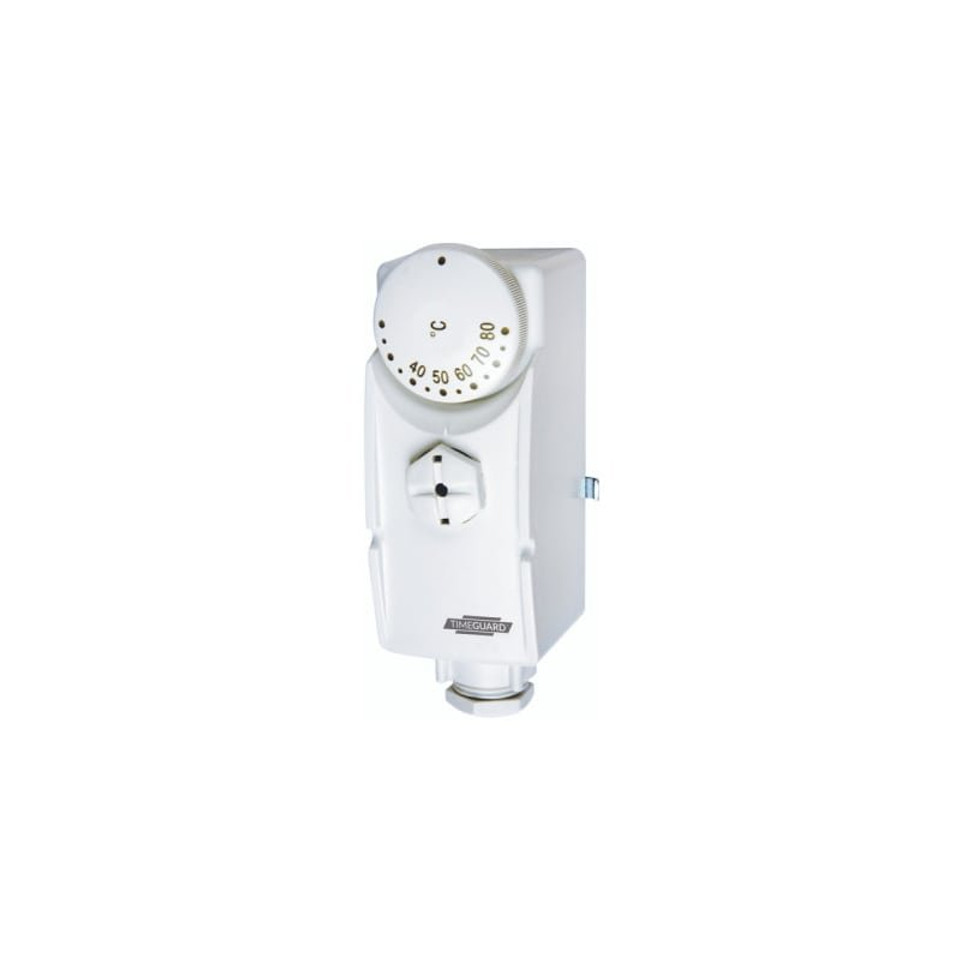

Timeguard TRT044 Cylinder/Pipe Thermostat – Surface Mount
Precision Temperature Control for Cylinders & Pipes
The Timeguard TRT044 Surface Mount Thermostat offers highly accurate temperature regulation for domestic hot water cylinders or pipework. Whether you're managing a central heating system or need reliable temperature monitoring for hot water storage, this mechanical thermostat provides surface-mount convenience without compromising control or efficiency.
Versatile Surface-Mounted Thermostat Design
Designed to fit directly onto pipes or cylinders, the TRT044 is ideal for applications where internal sensors aren't viable. With its adjustable temperature dial, users can effortlessly set the desired temperature for hot water control. The unit includes a spring strap for quick and secure mounting, making it a go-to choice for retrofit heating upgrades or new installations.
Reliable Energy-Saving Performance
The TRT044 helps prevent overheating and excessive energy consumption by maintaining consistent water temperatures. Its manual control dial and bimetallic sensor ensure rapid response to temperature fluctuations, delivering cost-effective heating efficiency and extending the lifespan of connected systems.
