Specifications:
- Function: Dual-channel time switch designed to control two heating circuits independently (e.g. heating zone and hot water)
- Weekly Programming:
- 7-day calendar schedule with six switching periods per channel each day
- Full customisation of weekday and weekend timings
- Power Supply: 230 V AC, 50 Hz
- Switching Outputs:
- Two independent volt-free relay contacts
- Each rated at 6 A resistive / 2 A inductive (6(2)A)
- Display & Interface:
- Backlit LCD showing time, date, and programme settings
- Intuitive button navigation for simple schedule setup
- Backup Battery: Maintains clock and schedule memory during power failure (typically >24 hours retention)
- Override Modes: Manual override for each channel; short-term (boost) override feature supported

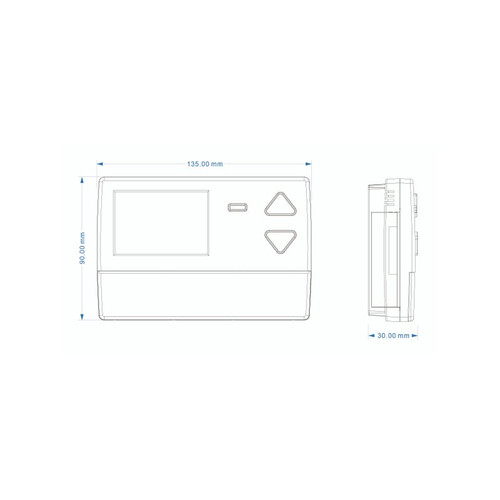

- Installation Format: Surface-mounted to standard back-box; neat bezel finish for professional appearance
- Operating Temperature: 0 °C to +45 °C ambient; storage –10 °C to +60 °C
- Material & Construction: Durable flame-retardant plastic housing
- Certifications: Conforms to CE and UKCA standards; compliant with EMC and low-voltage safety regulations
- Warranty: 3-year manufacturer guarantee
Timeguard TRT036N 7 Day Digital Heating Programmer – 2 Channel Control
Dual Channel Heating Control for Maximum Flexibility
The Timeguard TRT036N 7 Day Digital Heating Programmer is engineered to provide precise, programmable control over two independent heating zones. Whether managing central heating and hot water or two separate zones in a property, this 2 channel heating controller ensures your system runs efficiently and only when needed. Designed for homes, offices, and commercial premises, it puts full scheduling power at your fingertips.
Easy-to-Use 7 Day Scheduling for Each Channel
Each of the two channels can be independently programmed across a 7-day cycle, giving you the freedom to customise your heating to suit busy weekdays and relaxed weekends. With up to 3 ON/OFF settings per day, the TRT036N helps reduce energy waste while maintaining comfort. A clear digital display and intuitive controls make it ideal for users of all experience levels.
Energy Efficiency and Comfort Without Compromise
Built with modern lifestyles in mind, this programmable digital heating controller helps households and facilities cut energy bills without sacrificing warmth. The tamper-proof feature prevents unauthorised changes, making it ideal for rented or shared properties. With its reliable performance and user-focused design, the TRT036N helps you take full control of your heating system with confidence.
