Specifications:
- Functionality: Single-channel timer controller designed to interface with compatible room thermostats
- Control Format: Seven-day programming with individual daily settings
- Switching Intervals: Four heating periods available per day (adjustable comfort and economy set-points)
- Program Modes:
- Weekday grouping (Mon–Fri) and separate weekend settings
- Manual override and holiday-mode lockout
- Compatible with Timeguard’s TR-series thermostats and similar relay load controls
- Power Supply: 230 V AC, 50 Hz
- Switching Output: Volt-free contact rated at 6 A resistive, 2 A inductive (6(2)A)
- Display: LCD screen showing time, day, temperature, and programme status
- Time Accuracy: Built-in quartz crystal; power-fail battery retains clock and schedule for up to 24 hours
- Backup Battery: User-replaceable lithium cell for memory retention

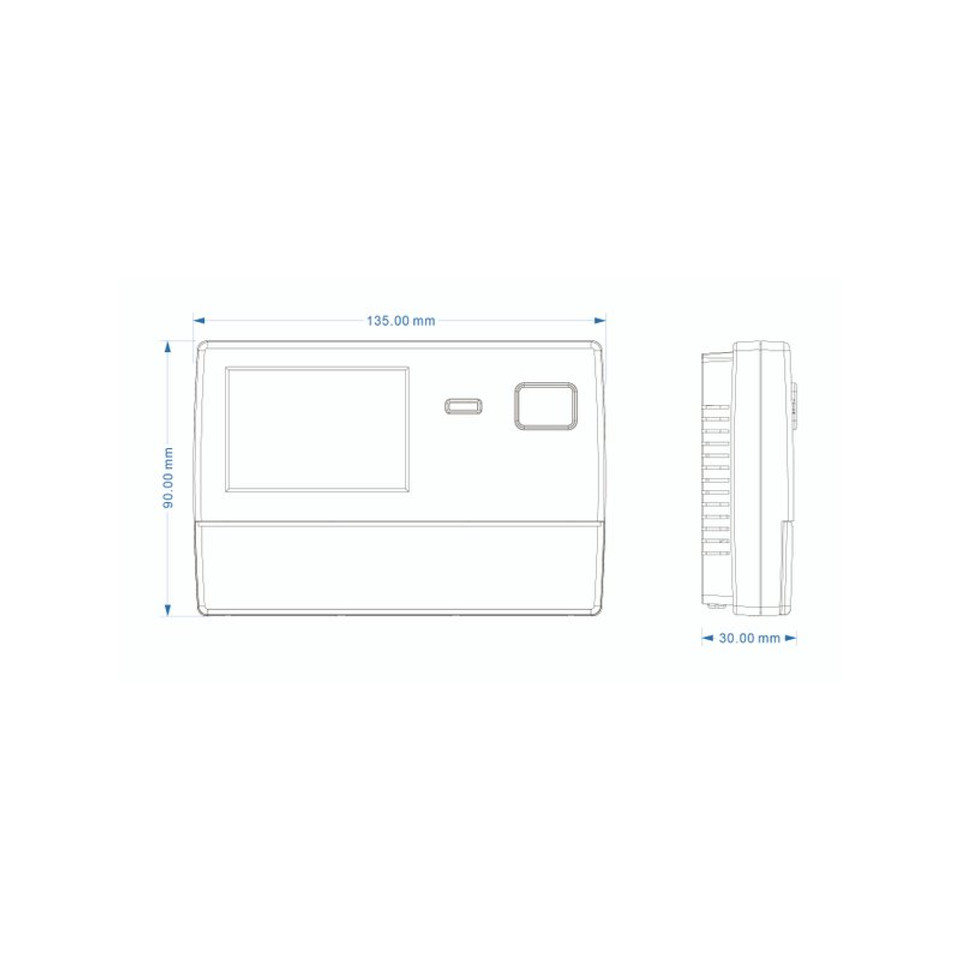

- Mounting Method: Surface-mounted to standard electrical back-box with neat bezel finish
- Operating Temperature: 0 °C to +45 °C
- Storage Conditions: –10 °C to +60 °C
- Housing Material: Flame-retardant plastic case with secure clip closure
- Certifications: CE and UKCA compliant; EMC and LVD tested
- Warranty: 3-year manufacturer’s warranty

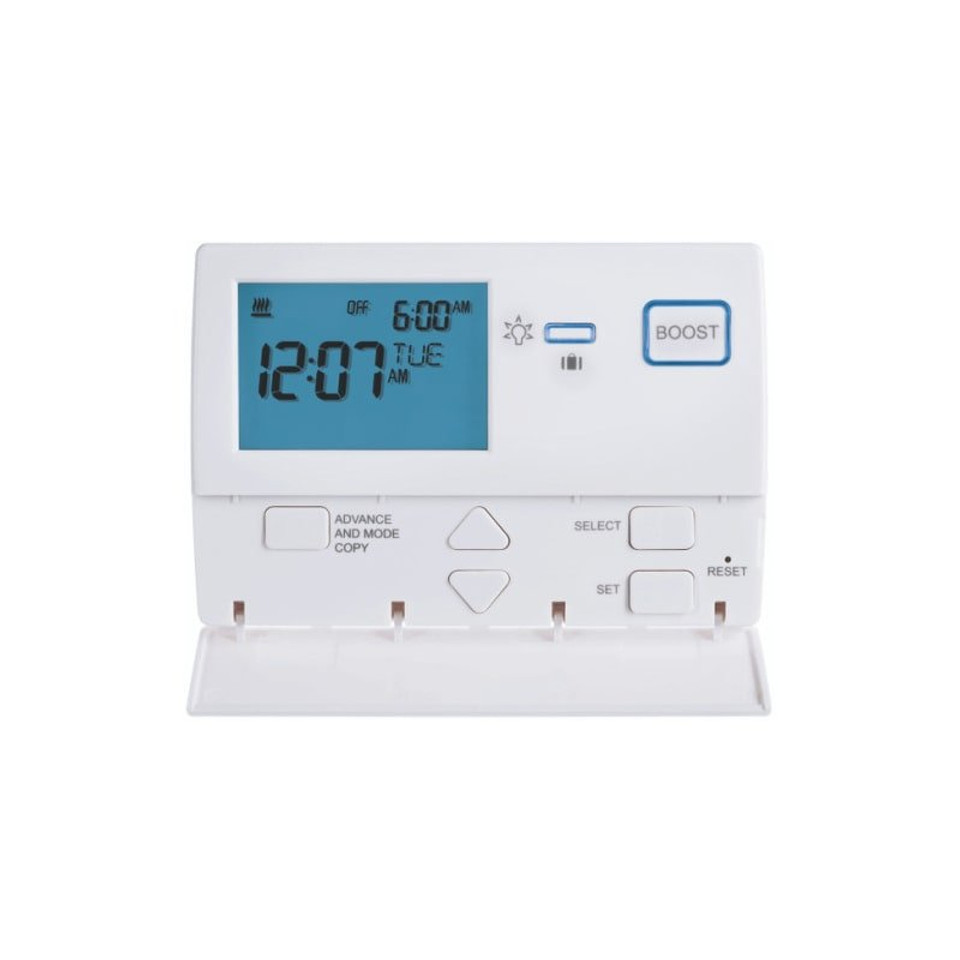

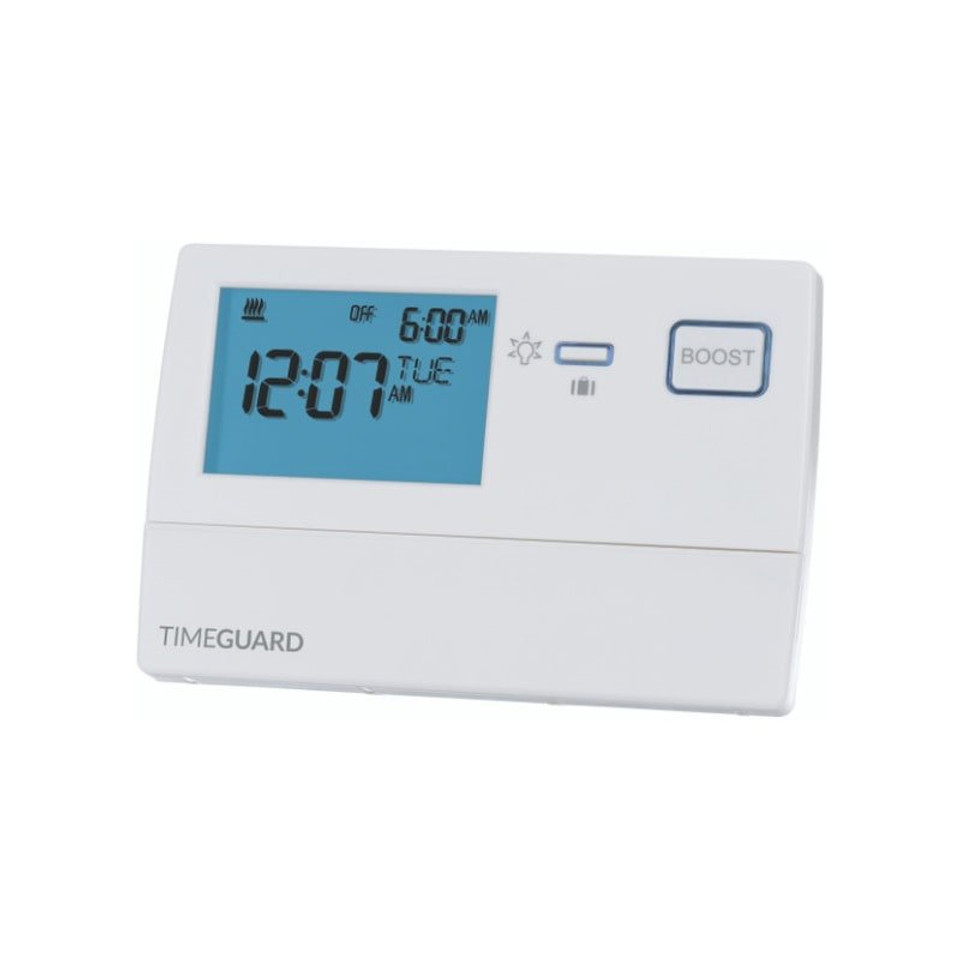

Timeguard TRT034N 7 Day 1 Channel Digital Heating Programmer for Room Thermostats
7-Day Heating Control Made Simple
The Timeguard TRT034N 7-Day Digital Heating Programmer offers full weekly control over your heating schedule. Designed for compatibility with room thermostats, it allows custom timing for each day—ideal for changing routines. Whether at home or in the office, this programmer helps you maintain a warm environment only when you need it, saving energy without sacrificing comfort.
Custom Comfort with Flexible Programming
Easily set different heating times across the week with one-channel digital control. The TRT034N lets you programme up to 3 ON/OFF periods per day, giving you full flexibility to match your daily lifestyle or working hours. Its clear LCD display and intuitive interface ensure that setup and adjustments are straightforward—even for first-time users.
Reliable Efficiency for Modern Heating Systems
Engineered with modern households and commercial spaces in mind, this digital programmer integrates seamlessly with room thermostats and heating systems. The 24-hour battery back-up prevents data loss during power cuts, and the hardwired installation ensures a stable connection for uninterrupted performance. Timeguard’s reputation for quality ensures long-lasting, dependable control.
