Specifications:
- Type: Frost thermostat with tamper-resistant housing
- Set Temperature Range: Fixed range between 5 °C and 10 °C (factory set point; adjustable by authorised personnel)
- Control Output: SPST relay; resistive load rated up to 6 A, 2 A inductive at 230 V AC
- Power Supply: 230 V AC, 50 Hz; Class II (double insulated)
- Temperature Accuracy / Differential: ± 1 °C; anti-bounce switching hysteresis to prevent rapid cycling
- Operating Temperature Range: –10 °C to +40 °C
- Housing & Protection: Tamper-proof enclosure with locking mechanism
- Mounting: Surface-mounted unit; fixed 60 mm wall box centres
- Indicator: Internal or external LED shows when heating output is active (locked access)
- Switching Logic: Simple frost protection control – delivers heat when ambient temperature drops below setpoint
- Certifications: CE and UKCA markings; ErP Class II product
- Guarantee: 3-year manufacturer warranty
- Applications:
- Frost protection in boiler rooms, plant rooms, garages, and unheated spaces
- Areas where unauthorised adjustment of the set point must be prevented
- Utility spaces needing simple, reliable frost-control action

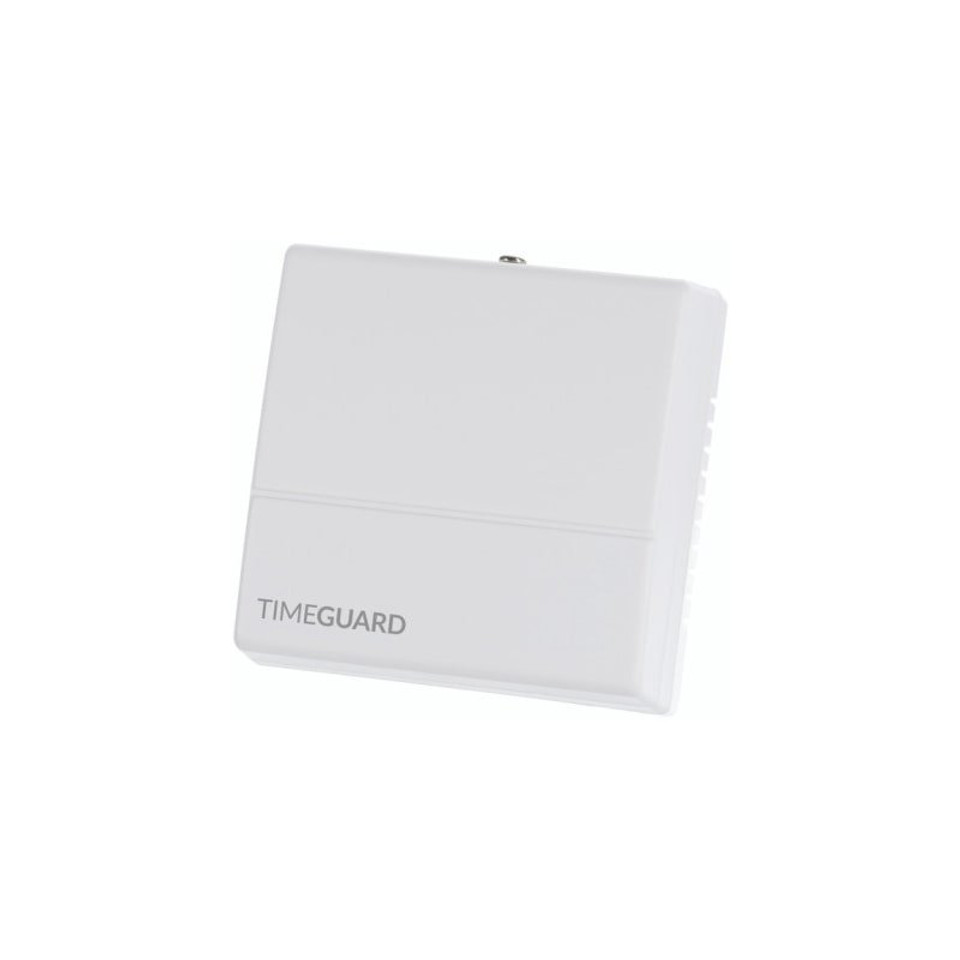

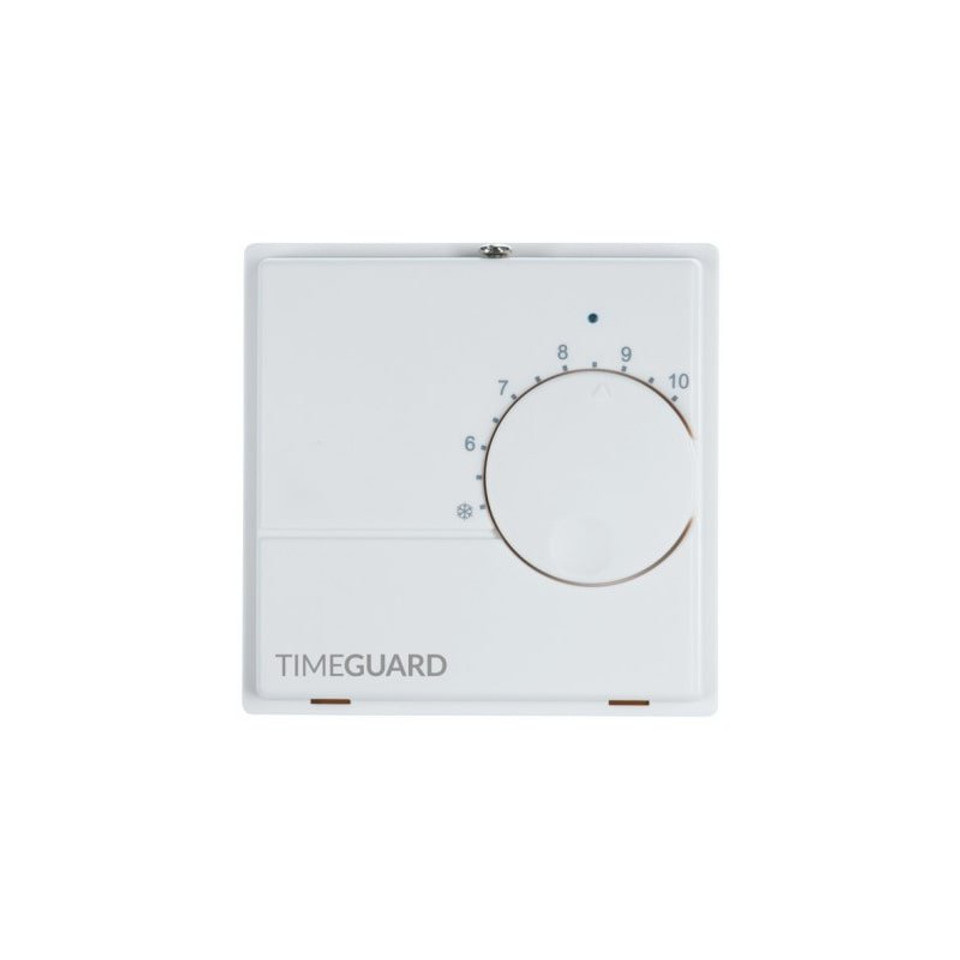

Timeguard TRT031N Frost Thermostat – Tamper Proof
Protect Your Property from Cold Damage
The Timeguard TRT031N Frost Thermostat is designed to prevent freezing temperatures from damaging your home or commercial premises. With a tamper-proof casing and a low-set 5–10°C temperature range, it provides dependable frost protection for garages, outbuildings, boiler rooms, and lofts.
Tamper-Proof Design for Peace of Mind
Engineered for environments where unauthorised adjustment must be avoided, the TRT031N frost thermostat features a tamper-resistant housing with concealed controls. Ideal for landlords, property managers, and facility operators, this thermostat ensures consistent operation without interference.
Energy-Efficient Frost Protection
Keep heating costs down while maintaining vital frost protection. The Timeguard TRT031N activates heating only when necessary, reducing energy consumption during colder months. It's the smart choice for safeguarding plumbing, heating systems, and vulnerable building spaces.
