Specifications:
- Product Type: Slimline 24-hour digital fused spur time switch for daily programmable control of fixed electrical loads.
- Switching Capacity:
- Resistive load: 13 A (max 3 kW)
- Inductive load: 2 A max
- Voltage-free SPDT switch contacts (changeover)
- Programming Options:
- Up to 20 ON/OFF events per day
- Repeats daily
- 1-minute switching increments
- Power Supply: 230 V AC, 50 Hz
- Fuse Rating: Built-in 13 A replaceable BS1362 fuse
- Display Type: Slim LCD digital screen with time and programme indication
- Manual Control: Auto, permanent ON/OFF modes with override function
- Battery Backup: Rechargeable memory backup to retain settings during power loss
- Installation Type: Slimline fused spur format – surface or flush mount on standard back box
- Construction Material: Compact, flame-retardant polycarbonate housing
- Ingress Protection Rating: IP20 – for indoor use only
- Operating Temperature Range: 0 °C to +40 °C
- Dimensions: Approx. 85 mm (H) × 85 mm (W) × 40 mm (D)
- Certifications: CE and UKCA marked; complies with BS EN safety standards
- Warranty: 3-year manufacturer’s guarantee

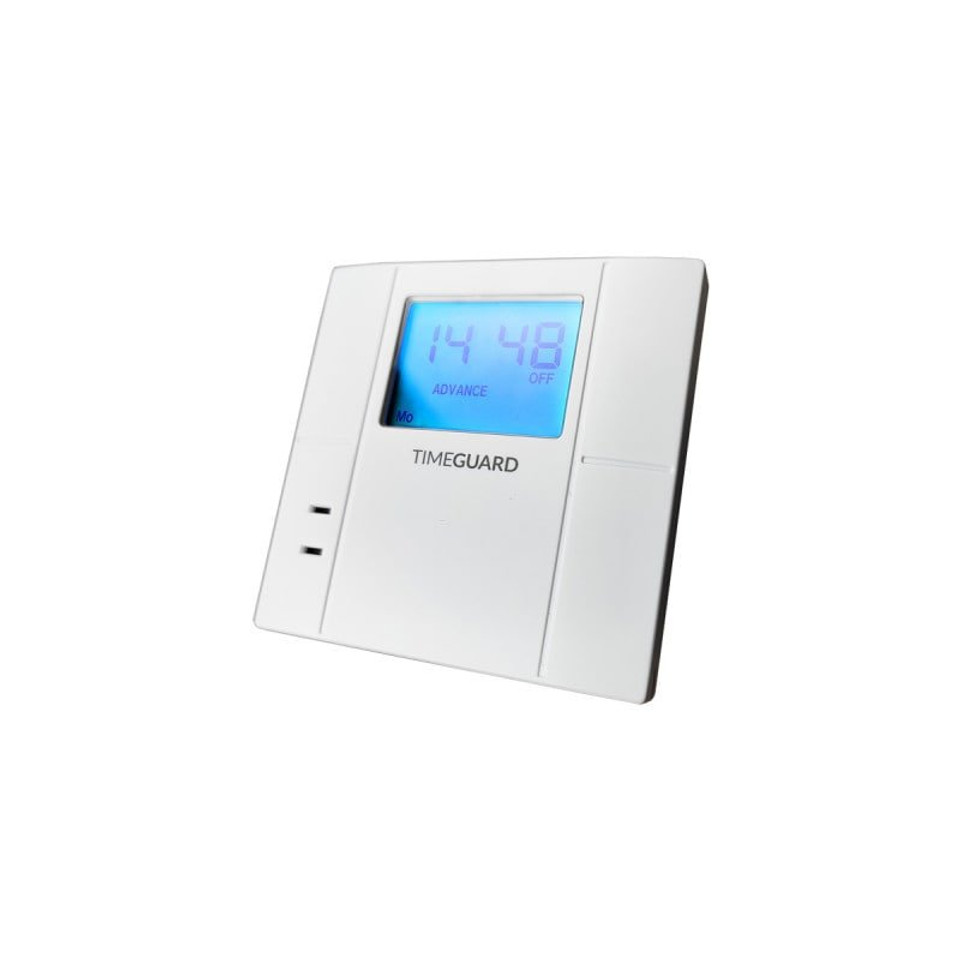

Timeguard FST24SL Slim Line 24 Hour Fused Spur Timeswitch
Discreet Design Meets Dependable Daily Control
The Timeguard FST24SL Slim Line 24 Hour Fused Spur Timeswitch offers compact, flush-mounted control for daily electrical scheduling. Designed to replace a standard fused spur, its ultra-slim profile blends seamlessly into any wall, while the intuitive 24-hour timer ensures simple automation of fixed appliances like heaters, immersion tanks, and towel rails. This is reliable daily control with minimalist design appeal.
Daily Scheduling for Energy Efficiency
With a built-in 24-hour programmable timer, the FST24SL helps reduce energy waste by powering devices only when needed. Set appliances to switch on and off automatically with up to 96 quick-set segments—a user-friendly approach to managing power use. This timer keeps things running on your schedule while improving efficiency in homes, rentals, and light commercial spaces.
Integrated Safety with Sleek Control
This fused spur timer switch features a 13A fuse for safe operation and includes a manual override for instant control. It’s ideal for controlling electric heating systems or water heating setups, offering reliable performance backed by Timeguard’s trusted engineering. Its slimline build and crisp white finish make it an elegant yet essential upgrade for smart energy use.
