Specifications:
- Model: Xplus 2 AC
- Part Number: 92430AW
- Type: Multi-point Mechanical Extract Ventilation (MEV) unit
- Motor Type: AC motor
- Application: Centralised ventilation for residential kitchens, bathrooms, utility rooms, and toilets
- Max Airflow: Up to 280 m³/h (77.7 l/s)
- Duct Connections: 5 x 100 mm extract spigots, 1 x 125 mm exhaust spigot
- Power Consumption: 20W – 70W depending on speed setting
- Speed Control: 3-speed selectable via integral or external controller
- Noise Level: 33 dB(A) @ 3 m (at typical setting)
- Voltage: 230V~ 50Hz
- Mounting: Wall, floor, or ceiling-mounted (multi-orientation design)
- Construction: ABS plastic housing for durability
- IP Rating: IPX4 – Suitable for installation in bathrooms/zones with high humidity
- Filter: Not required (filter less design)
- Dimensions (HxWxD): Approx. 270 x 360 x 170 mm
- Approvals: CE marked, UKCA compliant
- Warranty: Manufacturer’s standard warranty
- Ideal For: New build and refurbishment projects requiring continuous extract ventilation in line with Building
- Regulations (Approved Document F)

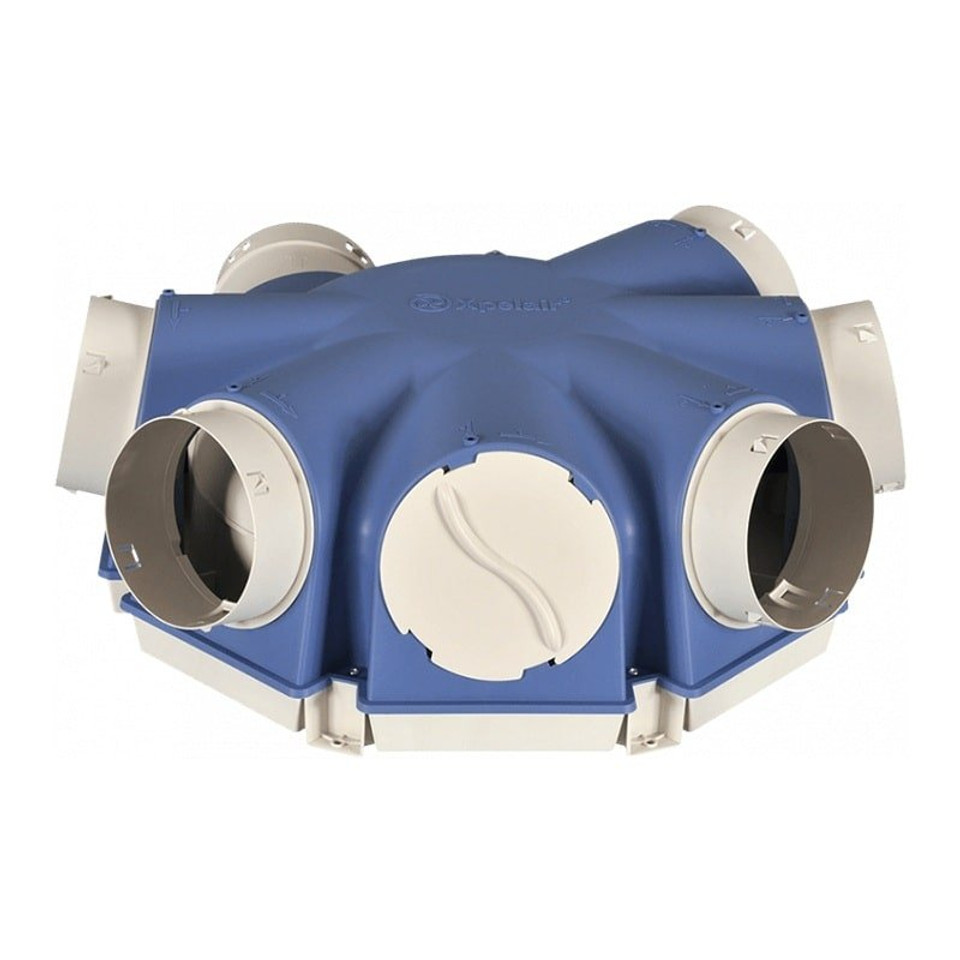

Xpelair Xplus 2 AC Multi-Point Mechanical Extract Ventilation Unit MEV – 92430AW
Whole-Property Ventilation, One Compact Unit
The Xpelair Xplus 2 AC Multi-Point Extract Ventilation Unit is the perfect solution for continuous mechanical extraction in homes, apartments, and light commercial spaces. Designed to ventilate multiple wet rooms simultaneously—such as bathrooms, kitchens, and utility rooms—this centralised unit delivers effective air extraction that combats condensation, mould and lingering odours. It’s ideal for homes looking to improve indoor air quality without sacrificing energy efficiency.
Compact, Versatile & Installer Friendly
Built with flexibility in mind, the Xplus 2 AC offers a compact and lightweight design that can be installed in ceiling voids, cupboards or lofts. The multi-point extraction capability allows you to connect to several ducts, making it perfect for centralised MEV (Mechanical Extract Ventilation) systems in modern properties. It comes with a range of spigot configurations, offering versatility during installation and enabling future duct upgrades or alterations with ease.
Low-Energy, Quiet and Maintenance-Free
Equipped with a long-life AC motor and low-noise operation, the Xplus 2 AC runs smoothly and efficiently 24/7. The continuous airflow prevents humidity build-up, protects the building fabric and ensures a healthier indoor environment. Thanks to its low wattage consumption and robust housing, it offers a reliable and durable solution for landlords, developers, and homeowners who demand quality and performance.
